Axial Drum Cutters
HKM AC10
- Carrier Weight (ton)
- 8-15
- Operating Weight (kg)
- 360
- Required Operation Power (kW)
- 63
- Oil Flow (l/min)
- 100-140
- Max. Operating Pressure (bar)
- 270
- Max Torque (320 Bar) DC
- 6220
- RPM at 40 L/min
- 97
- Drum Diameter (mm)
- 440
- Drum Width (mm)
- 480
- Cutter Bits (pcs)
- 40
- Max Power Output (kW)
- 50
- Max Flow (l/min)
- 150
- Pressure (bar)
- ≤315 bar
- Max Torque (350 Bar) ER
- 5200
- Max Torque (380 Bar) KR
- 6800
- Output Torque (Nm)
- 8455 Nm@320bar
Product Detail

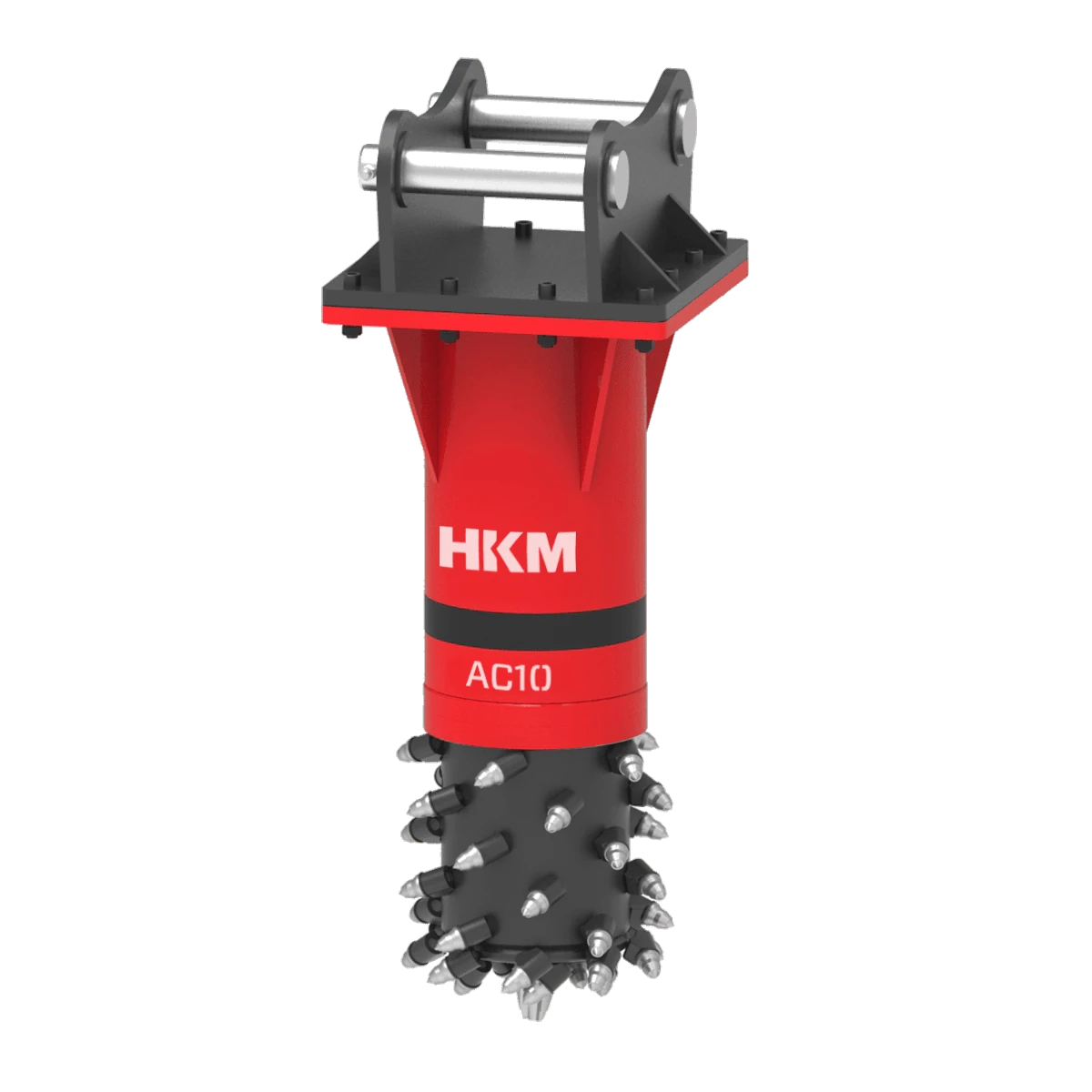

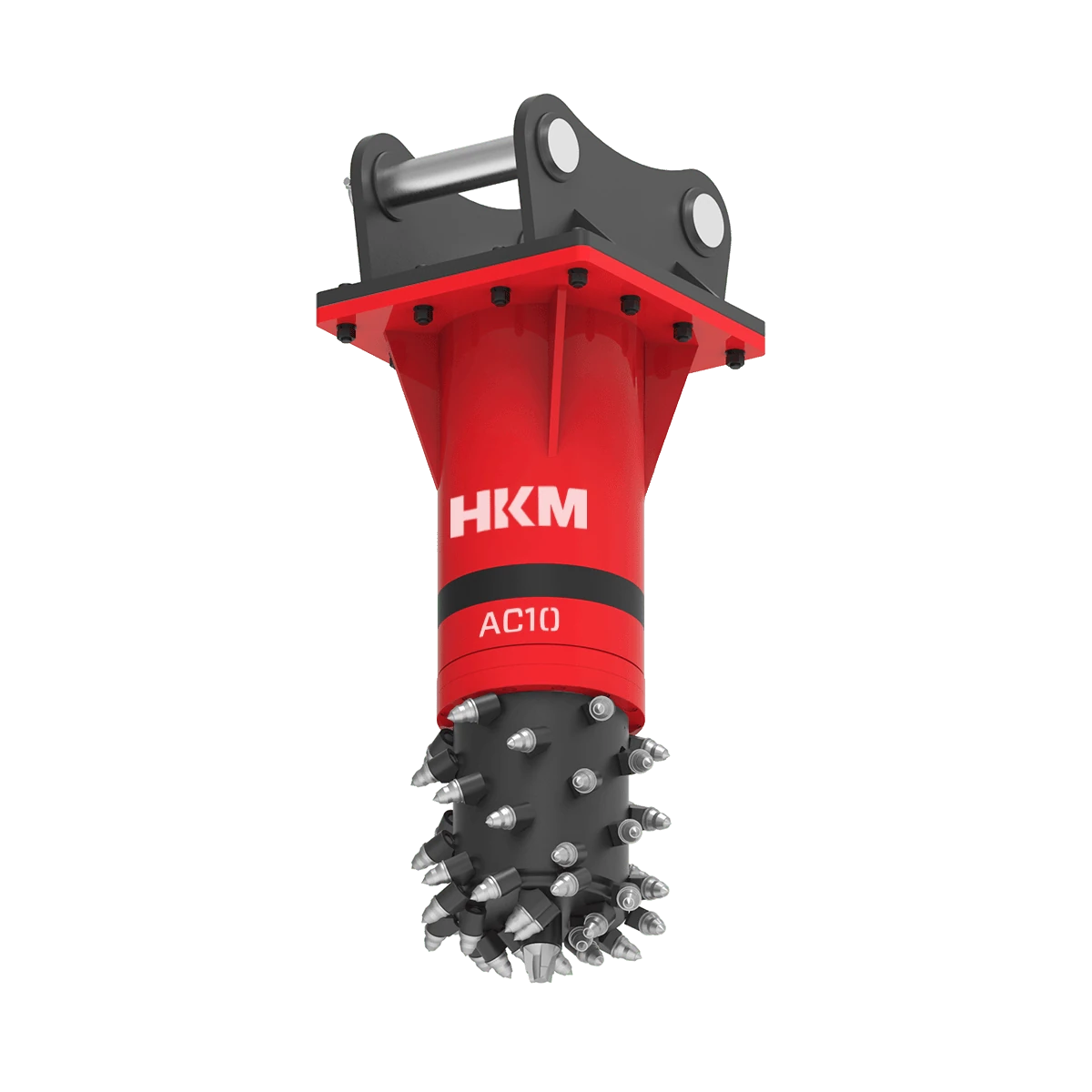

HKM AXIAL DRUM CUTTERS - AC10
The HKM AC10 Axial Drum Cutter is a low-noise, high-torque excavation/milling attachment developed for 8-15 t class carriers. Its single-axis vertical drum layout concentrates power density on the cutting axis, delivering clean, controlled cutting in narrow trenches, curb/gutter profiling and vertical-face leveling.
At 360 kg operating weight, the AC10 stands out with a low-vibration character that improves operator comfort in urban applications and offers short cycle times.
KEY FEATURES
- High-torque drive and optimized pick placement
- Low vibration and noise; suitable for urban sites
- Precise control in tight spaces and on vertical faces
- Fast pick changes and protected hose/cable routing
- On-site homogeneous particle output suitable for backfill
APPLICATIONS
- Curb, gutter and wall profiling
- Infrastructure channel and slot cutting
- Vertical-face leveling and surface preparation
- Selective demolition and repair work
OPTIONAL EQUIPMENT
- Underwater Kit: Fully sealed electrical/hydraulic interface and corrosion-resistant components.
- Wear-Protection Kit: Hardox™/AR400 body liners for abrasive ground.
- Extended-Reach Module (+500 mm): Extra depth for deep trenches and steep-face profiling.
Frequently Asked Questions
What is the HKM AC10 used for?
The HKM AC10 is a model in the Axial Drum Cutters family, used for controlled, low-vibration cutting on vertical surfaces and trench/profile work.
Which carrier is the HKM AC10 suitable for?
The HKM AC10 is built to match carriers in the 8-15 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM AC10?
Key technical values of the HKM AC10: Operating Weight (kg) 360, Oil Flow (l/min) 100-140, Max Flow (l/min) 150, Max. Operating Pressure (bar) 270. The full spec table is on the product page and in the brochure.
