Hydraulic Augers
HKM hydraulic augers fit 1-45 ton machines with 2,000-48,000 Nm torque for drilling and driving. High efficiency in planting, fencing and foundation work.
HKM hydraulic augers deliver high torque, low maintenance and precise drilling for ground boring, pile pre-drilling, fence posts and landscaping. With 8 models from AG20 to AG500 and carrier-specific bracket options, they work safely and efficiently from mini excavators to large machines.
The high-torque drive unit ensures steady advance with a wide oil-flow range and an optimized gearbox, while the compact, balanced body provides low vibration and safe operator control. The pinned connection enables fast bit changes on site, and a broad range of bits and extensions (D200-D500, 1200-2300 mm) adapts to every soil type.
Hydraulic Augers
Hydraulic Auger Sets
HKM AG20
View Details→
Hydraulic Auger Sets

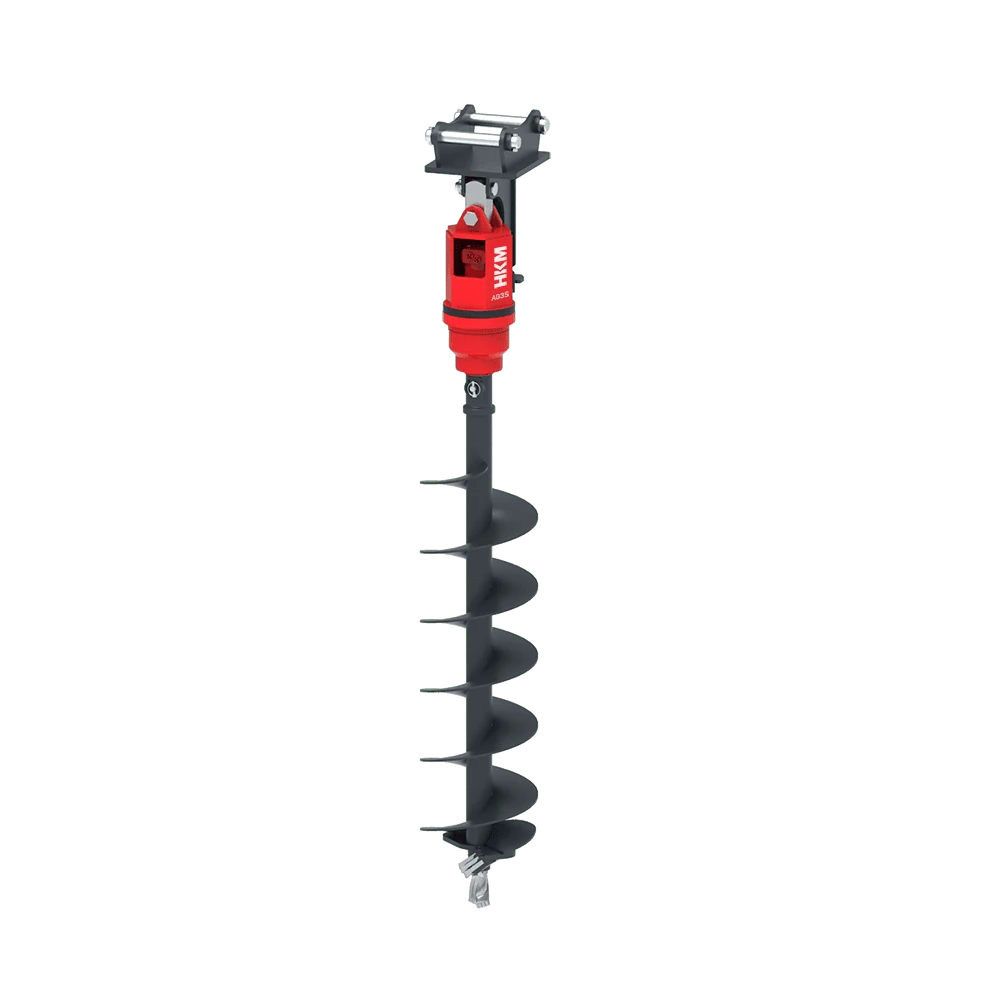

HKM AG35
View Details→
Hydraulic Auger Sets
HKM AG50
View Details→
Hydraulic Auger Sets
HKM AG80
View Details→
Hydraulic Auger Sets

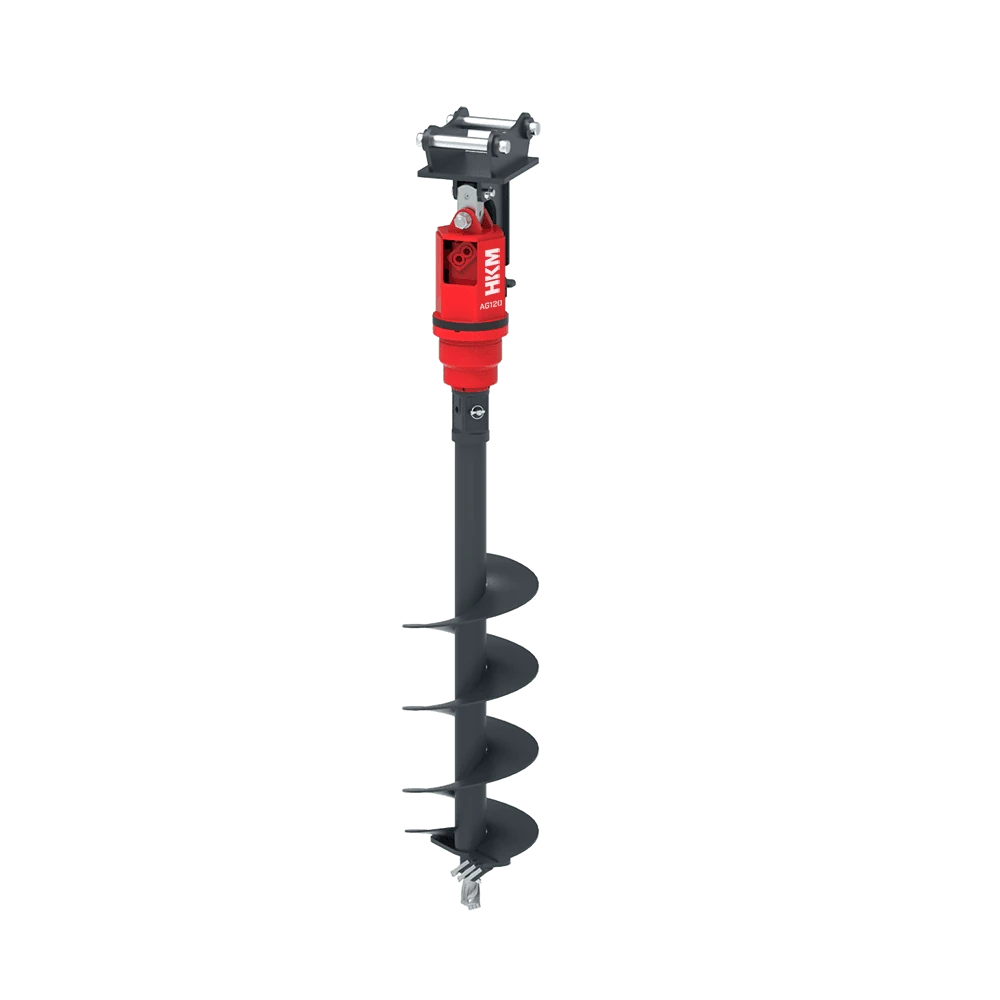

HKM AG120
View Details→
Hydraulic Auger Sets
HKM AG150
View Details→
Hydraulic Auger Sets
HKM AG250
View Details→
Hydraulic Auger Sets

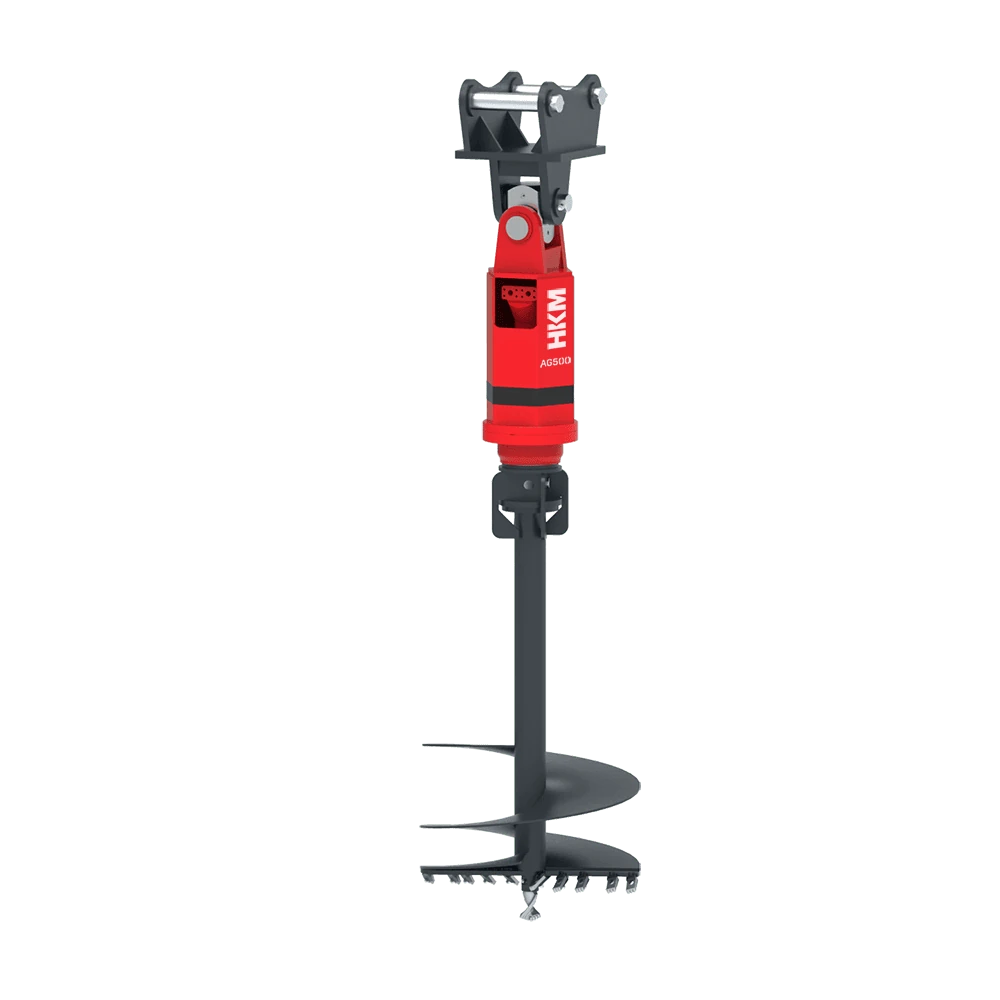

HKM AG500
View Details→Will it fit your machine?
Enter your excavator tonnage to see which Hydraulic Augers models fit your machine. Narrow it further by oil flow if you wish.
Machine operating weight
Flow delivered to the attachment line
Enter your excavator tonnage to begin.
This tool performs a pre-selection based on catalogue values and is not a binding quotation. Attachments without a hydraulic supply, such as rippers, have no flow or pressure rows; those models are unaffected by the flow filter. The final choice is made together, based on material, workload and the hydraulic equipment of the carrier.
Compare every attachment family on one screen
Attachment selector →Key Features
High-Torque Drive Unit
Steady advance with a wide oil-flow range and an optimized gearbox.
Compact, Balanced Body
A clean vertical line, low vibration and safe operator control.
Fast Bit & Accessory Change
Practical on-site changes thanks to the pinned connection.
Protected Hydraulics
Hoses and connections are shielded against impacts.
Wide Bit & Extension Range
D200-D500 diameters and 1200-2300 mm length options.
Specifications Table
Hydraulic Auger
| | | | | | | | |
| Model | AG20 | AG35 | AG50 | AG80 | AG120 | AG150 | AG250 | AG500 |
|---|---|---|---|---|---|---|---|---|
| Carrier Weight (ton) | 1 - 2,5 | 3 - 5 | 5 - 7 | 8 - 12 | 13 - 17 | 13 - 17 | 18 - 24 | 20 - 45 |
| Drive Unit Weight (kg) | 54 | 71 | 108 | 115 | 167 | 167 | 270 | 470 |
| Torque (Nm) | 2000 | 3500 | 5000 | 8000 | 12000 | 15000 | 25000 | 48000 |
| Rotary Speed (RPM) | 40 - 92 | 32 - 72 | 28 - 64 | 28 - 60 | 22 - 48 | 20 - 43 | 12 - 26 | 11 - 30 |
| Input Power (kW) | 2,5 - 18,7 | 4,0 - 28,0 | 5,3 - 32,0 | 8,0 - 54,0 | 9,3 - 54,0 | 21,3 - 68,0 | 21,3 - 68,0 | 26,6 - 149,3 |
| Oil Flow (l/min) | 22 - 55 | 30 - 70 | 40 - 75 | 60 - 135 | 70 - 150 | 80 - 170 | 80 - 170 | 100 - 280 |
| Operating Pressure (bar) | 70 - 205 | 80 - 240 | 80 - 240 | 80 - 240 | 80 - 240 | 160 - 240 | 160 - 240 | 160 - 320 |
| Shaft Diameter (mm) | 65 (round) | 65 (round) | 75 (square) | 75 (square) | 75 (square) | 75 (square) | 75 (square) | 110 (square) |
| Auger Diameter (mm) | 100 - 400 | 100 - 750 | 150 - 600 | 150 - 900 | 150 - 900 | 150 - 900 | 150 - 1200 | 300 - 1500 |
| Auger Length (mm) (recm.) | 1200 | 1200 | 1500 | 1500 | 1750 | 1750 | 1750 | 1750 |
Applications
- Fence/post installation, agricultural and landscaping drilling
- Pile and bored-pile pre-drilling
- Signage, lighting poles and solar panel footings
- Drainage/irrigation lines and root aeration
- Light construction and site preparation
Frequently Asked Questions
What is a hydraulic auger used for?
For precise, fast holes in the ground; common in piling, posts, tree planting and foundation work.
Which auger should I choose for my carrier?
The right motor and auger tool are set by carrier tonnage, diameter and ground type. Share your machine and we will recommend the set.
Are different tools needed for soil and rock?
Yes. An earth or rock auger tool is used by ground hardness; the right tool improves output and life.
