Products

Quick Couplers

Quick couplers enable safe switching between attachments in seconds. They save time on site and increase machine utilization.

HKM quick couplers speed up hydraulic attachment changes, enabling efficient work with fewer people on site. The 11 models from QC02 to QC60 fit 1.5-60 t excavators and deliver long-life performance with wear-resistant manganese-steel bodies and honed hydraulic cylinders.

A spring-loaded retaining disc and dual-lock pin system prevent accidental attachment release. Fully compatible with all leading excavator brands, they let you switch quickly, practically and safely between breaker, auger, bucket, concrete cutter and more.

Download Brochure

Quick Couplers

Quick Couplers

HKM QC60

View Details→

Will it fit your machine?

Enter your excavator tonnage to see which Quick Couplers models fit your machine. Narrow it further by oil flow if you wish.

Excavator tonnage (t)

Machine operating weight

Oil flow (l/min) (optional)

Flow delivered to the attachment line

Enter your excavator tonnage to begin.

This tool performs a pre-selection based on catalogue values and is not a binding quotation. Attachments without a hydraulic supply, such as rippers, have no flow or pressure rows; those models are unaffected by the flow filter. The final choice is made together, based on material, workload and the hydraulic equipment of the carrier.

Compare every attachment family on one screen

Attachment selector →

Key Features

Manganese Steel Body

High strength and wear resistance withstand heavy impacts.

Spring Safety Ring & Dual-Lock Pin

Prevents accidental attachment release even under high pressure.

Universal Compatibility

Adjustable pin spacings fit all major excavator brands.

Easy Maintenance

Sealed bearings and single-point greasing cut daily upkeep to minutes.

Specifications Table

Quick Coupler

Model	QC02	QC03	QC05	QC08	QC14	QC20

Carrier Weight (ton)	1,5-2,5	2,5-3,5	4-5	5-8	9-19	17-23
Operating Weight (kg)	30	35	60	85	180	300
Length A (mm)	400-430	430-460	540-550	585-620	790-820	970-1000
Height B (mm)	250-280	270-300	300-310	340-350	410-420	500-520
Width C (mm)	220-250	230-290	290-325	380-405	375-420	470-510
Pin-to-Pin Center Distance D (mm)	90-130	150-200	220-305	260-350	350-420	420-500
Forearm Open Width E (mm)	95-135	105-145	145-185	175-230	220-280	305-360
Retractable Distance of Oil Cylinder (mm)	90-135	150-200	220-305	260-350	350-420	420-500
Pin Center Axis Distance F (mm)	165-170	170-180	200-210	230-240	250-260	305-315
Pin Diameter G (mm)	25-30	30-40	40-50	45-55	60-65	70-80
Working Pressure (bar)	30-40	30-40	30-40	30-40	30-40	30-40
Oil Flow (l/min)	10-20	10-20	10-20	10-20	10-20	10-20

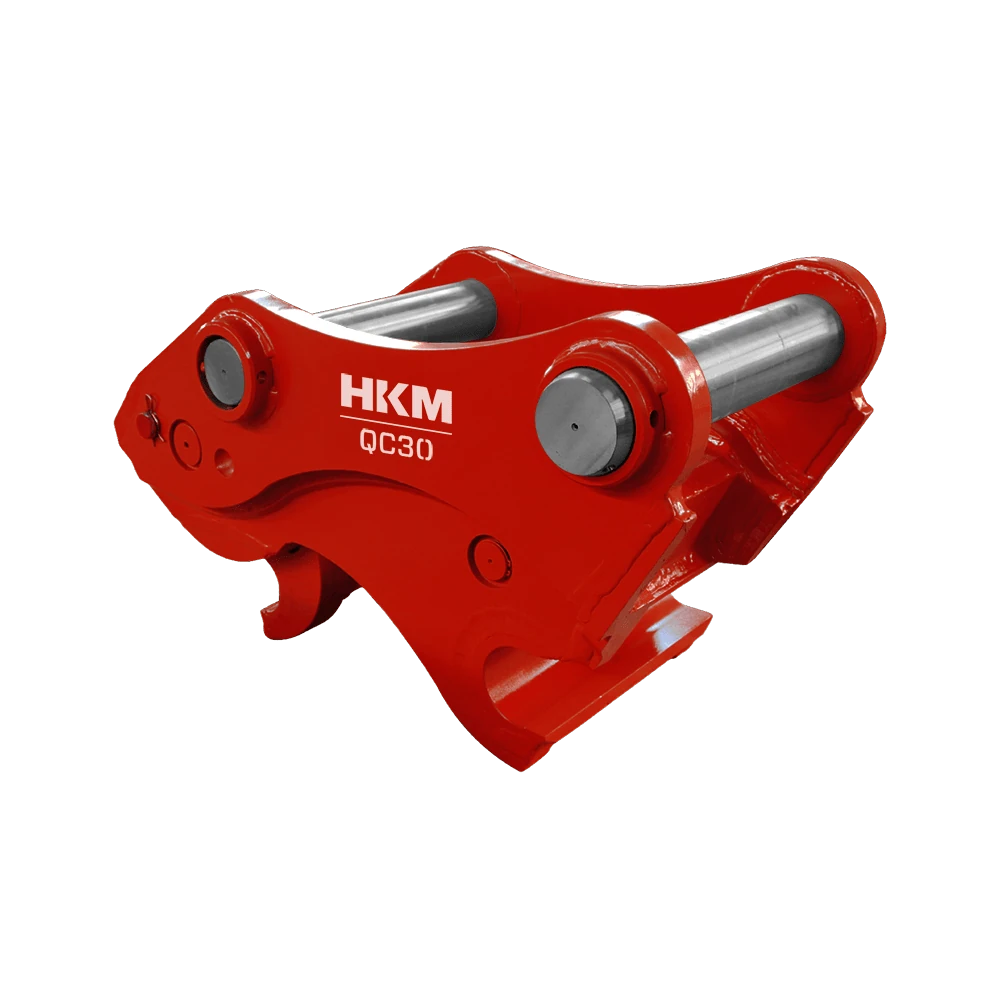

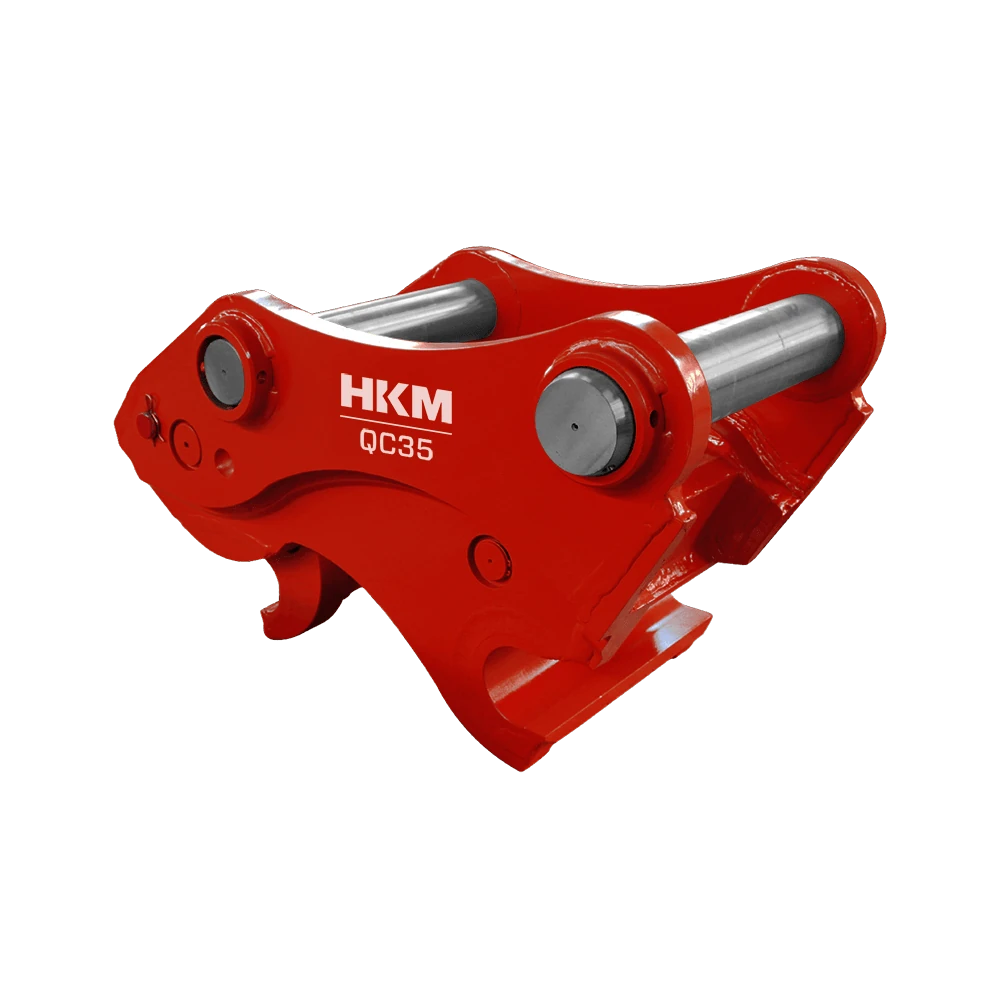

Model	QC25	QC30	QC35	QC45	QC60

Carrier Weight (ton)	23-30	30-35	34-40	40-49	50-60
Operating Weight (kg)	400	550	600	750	1000
Length A (mm)	1010-1030	1100-1200	1100-1200	1200-1300	1300-1450
Height B (mm)	590-620	630-640	630-640	630-650	800-850
Width C (mm)	520-570	530-570	550-610	620-660	670-800
Pin-to-Pin Center Distance D (mm)	470-520	490-580	490-580	535-665	570-670
Forearm Open Width E (mm)	325-410	345-410	410-480	410-480	420-510
Retractable Distance of Oil Cylinder (mm)	470-520	490-580	490-580	535-665	570-670
Pin Center Axis Distance F (mm)	385-395	390-420	390-420	400-440	510-550
Pin Diameter G (mm)	80-90	90-100	100-110	110-120	120-130
Working Pressure (bar)	30-40	30-40	30-40	30-40	30-40
Oil Flow (l/min)	10-20	10-20	10-20	10-20	10-20

Applications

Multi-attachment use
Construction and ground works
Demolition and recycling
Landscaping and infrastructure
Urban maintenance and road repair

Frequently Asked Questions

What does a quick coupler do?

It lets attachments be changed safely in seconds, boosting machine productivity and job safety.

Is it compatible with every attachment?

The right coupler is chosen by carrier and attachment type. Share your machine and attachments and we will plan the solution.

Mechanical or hydraulic, which should I pick?

It depends on change frequency and operator preference; a hydraulic coupler saves time with frequent changes.
