Products
Grapples
HKM grapples, excavator and log grapples, safely grip debris, rock, pipe and timber. Precise hold for recycling, demolition and forestry work.
HKM grapples turn your excavator into a precision-focused, high-efficiency material-handling solution. With models from EG05 to EG35 fitting 5-35 t carriers, they deliver superior control, strong gripping and structural durability in demanding demolition, recycling and sorting applications.
Wide jaw openings, high-torque rotation systems and a reinforced steel body excel in both precise sorting and heavy demolition, reducing repositioning, extending maintenance cycles and lowering total operation time.
Grapples
Excavator Grapples
HKM EG05
View Details→
Excavator Grapples
HKM EG15
View Details→
Excavator Grapples

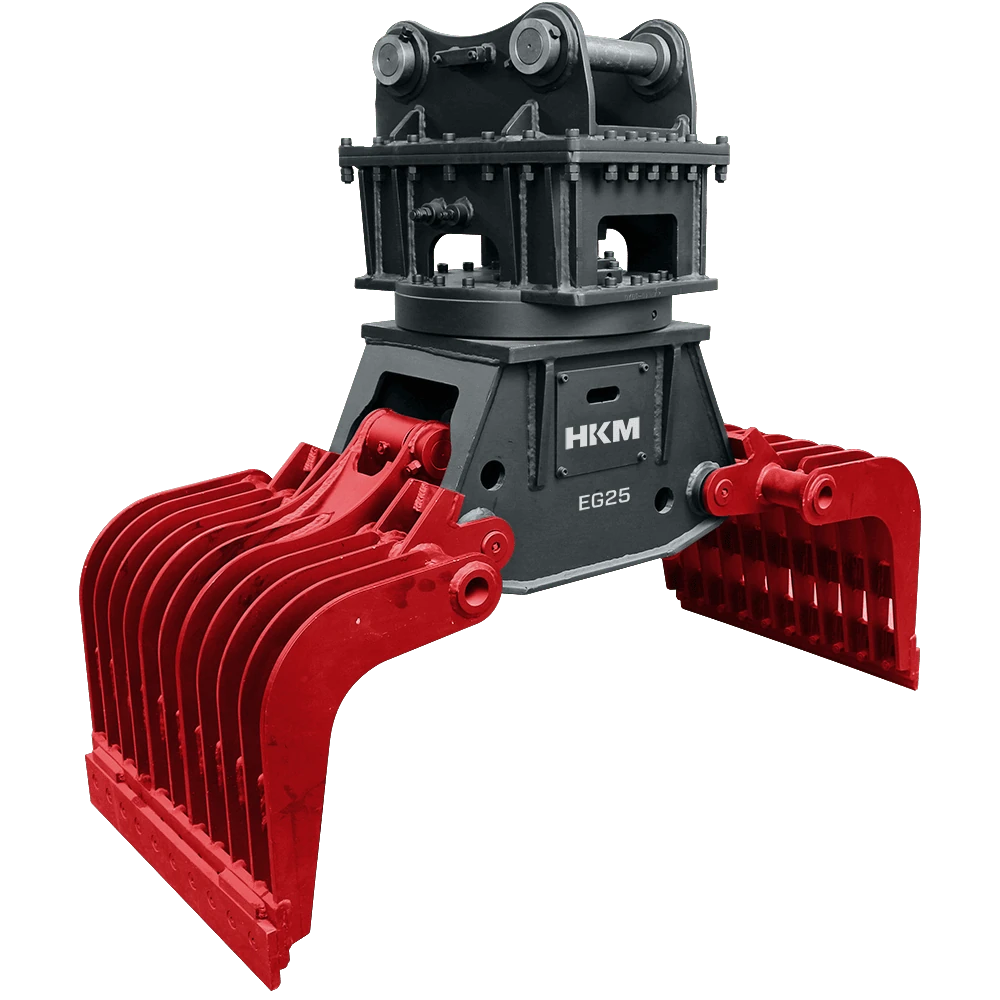

HKM EG25
View Details→
Excavator Grapples
HKM EG35
View Details→Log Grapples
HKM LG05
View Details→Log Grapples
HKM LG10
View Details→Log Grapples
HKM LG15
View Details→Log Grapples
HKM LG25
View Details→Log Grapples
HKM LG35
View Details→Will it fit your machine?
Enter your excavator tonnage to see which Grapples models fit your machine. Narrow it further by oil flow if you wish.
Machine operating weight
Flow delivered to the attachment line
Enter your excavator tonnage to begin.
This tool performs a pre-selection based on catalogue values and is not a binding quotation. Attachments without a hydraulic supply, such as rippers, have no flow or pressure rows; those models are unaffected by the flow filter. The final choice is made together, based on material, workload and the hydraulic equipment of the carrier.
Compare every attachment family on one screen
Attachment selector →Key Features
Reinforced Body Structure
A high-strength steel body offers maximum resistance to torsion, impact and abrasion.
High-Torque Rotation System
The 360° hydraulic rotator enables effective positioning under heavy loads.
Double-Sided Wear-Resistant Cutting Edges
Bolted edges change fast on site; double-sided use extends life.
Efficient Single-Cylinder Mechanism
Synchronized jaw movement reduces oil use and speeds the cycle.
Slim, Zero-Clearance Profile
Effective work inside containers, along walls and in tight spaces.
Specifications Table
Excavator Grapple
| | | | |
| Model | EG05 | EG15 | EG25 | EG35 |
|---|---|---|---|---|
| Carrier Weight (ton) | 5-9 | 9-16 | 18-26 | 28-35 |
| Operating Weight (kg) | 530 | 1130 | 1880 | 2410 |
| Operating Pressure (bar) | 200-240 | 220-260 | 240-280 | 240-280 |
| Oil Flow (l/min) | 100 | 150 | 200-250 | 200-250 |
| Height A (mm) | 1370 | 1860 | 2130 | 2470 |
| Width B (mm) | 620 | 850 | 1100 | 1380 |
| Opening C (mm) | 1400 | 1800 | 2200 | 2300 |
| Rotation Diameter (mm) | 360 | 593 | 690 | 690 |
Log Grapple
| Model | LG05 | LG10 | LG15 | LG25 | LG35 |
|---|---|---|---|---|---|
| Carrier Weight (ton) | 4-5 | 6-9 | 9-16 | 18-26 | 28-35 |
| Operating Weight (kg) | 320 | 435 | 950 | 1800 | 2130 |
| Operating Pressure (bar) | 110-140 | 200-240 | 220-260 | 240-280 | 260-300 |
| Oil Flow (l/min) | 30-55 | 100 | 160 | 200-250 | 220-280 |
| Opening A (mm) | 1060 | 1400 | 1600 | 2100 | 2500 |
| Rotation Diameter (mm) | 360 | 360 | 593 | 752 | 752 |
Applications
- Demolition applications
- Recycling and waste management
- Dismantling of light structures
- Landscaping and vegetation clearing
- Material handling and site cleanup
Frequently Asked Questions
What does a grapple do?
It safely grips and handles material such as rubble, rock, timber and scrap.
What types are there?
Different jaw types exist for demolition, scrap, rock and timber. We recommend the type for your job.
How is carrier compatibility ensured?
The right class and connection are chosen by carrier tonnage and job type. Share your needs.
