Crusher Buckets
Crusher buckets lower transport costs by crushing and screening material on site. They boost efficiency in recycling, mining and excavation work.

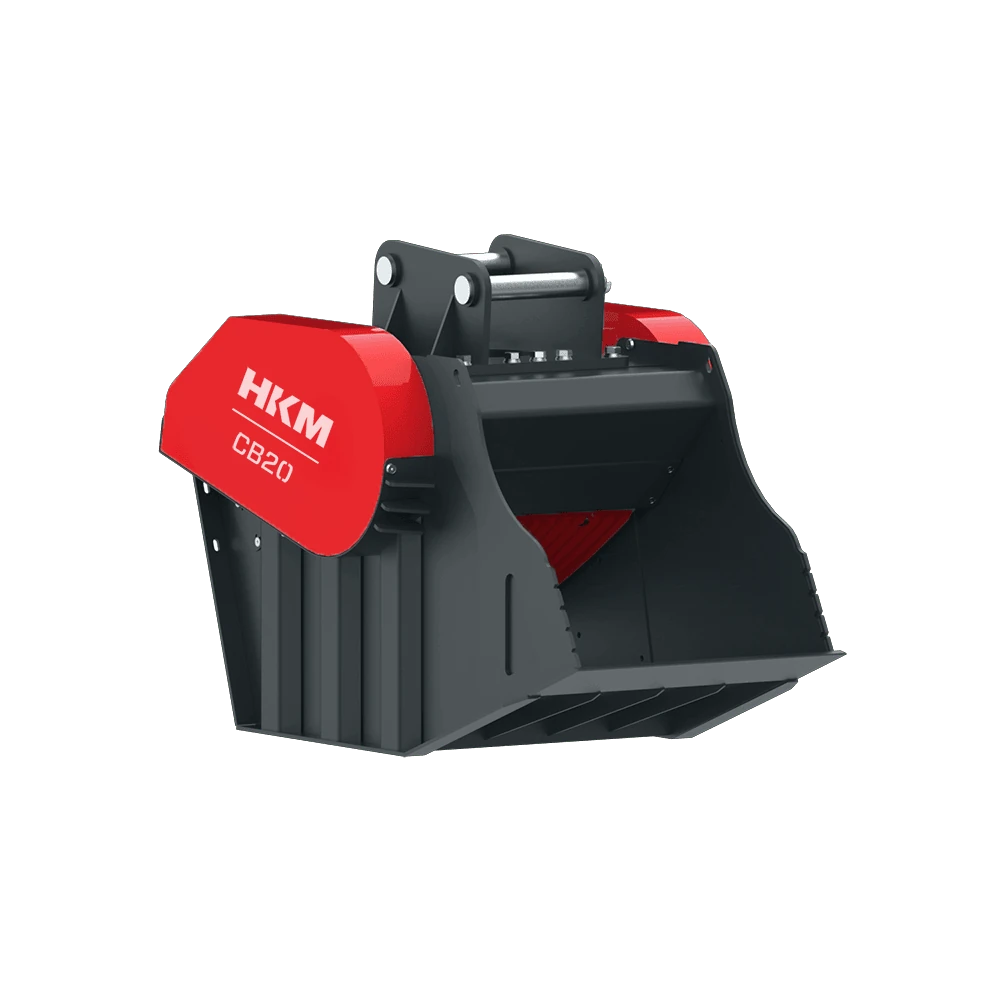

HKM crusher buckets turn your excavator into a powerful mobile crushing plant. Suited to 10-50 t carriers, the CB10, CB20, CB30 and CB40 offer heavy-duty steel construction, high-efficiency hydraulic drive and quick-change jaw plates for minimal downtime and continuous productivity.
Simple mounting and easy operation reduce haulage costs and eliminate waiting for fill material. From recycling demolition waste to crushing quarry stone, they let you crush and screen directly on site.
Will it fit your machine?
Enter your excavator tonnage to see which Crusher Buckets models fit your machine. Narrow it further by oil flow if you wish.
Machine operating weight
Flow delivered to the attachment line
Enter your excavator tonnage to begin.
This tool performs a pre-selection based on catalogue values and is not a binding quotation. Attachments without a hydraulic supply, such as rippers, have no flow or pressure rows; those models are unaffected by the flow filter. The final choice is made together, based on material, workload and the hydraulic equipment of the carrier.
Compare every attachment family on one screen
Attachment selector →Key Features
Reinforced Steel Body
Thick-plate construction and replaceable liners for wear resistance and long life.
Highly Reliable Hydraulic Drive
An axial piston motor and belt-protection valve extend motor life even when the bucket is full.
Quick-Change Jaw System
Upper and lower jaw plates are renewed in minutes.
Adjustable Output Size
Final aggregate size of 15-145 mm is set in under 10 minutes.
Integrated Loading Ramp
An inclined base plate guides material into the crushing zone and speeds filling.
Optional Dust Suppression & Magnet
A water spray reduces dust; an electromagnetic unit removes rebar.
Specifications Table
Crusher Bucket
 |  |  |  | |
| Model | CB10 | CB20 | CB30 | CB40 |
|---|---|---|---|---|
| Carrier Weight (ton) | 10-18 | 16-25 | 20-30 | 30-50 |
| Operating Weight (kg) | 1740 | 2290 | 3000 | 5000 |
| Load Volume (m³) | 0.55 | 0.75 | 1 | 1.5 |
| Load Volume (m³) ER | 0.5 | 0.8 | 1 | 1.2 |
| Jaw Height (mm) | 510 | 510 | 550 | 550 |
| Jaw Width (mm) | 650 | 800 | 920 | 1200 |
| Grain Size (mm) | 15-130 | 15-130 | 15-140 | 15-145 |
| Oil Flow (l/min) | 90-140 | 150-220 | 180-240 | 180-265 |
| Estimated Production 80mm (t/h) | 30.2 | 40.1 | 50.6 | 60.5 |
| Size (L x W x H, mm) | 1900x1034x1284 | 2095x1182x1284 | 2230x1304x1335 | 2330x1600x1440 |
Crushing Capacity (t/h)
| | | | |
| Model | CB10 | CB20 | CB30 | CB40 |
|---|---|---|---|---|
| Ø145 mm | - | - | - | 54,2 |
| Ø140 mm | - | - | 43,1 | 51,5 |
| Ø130 mm | 24,2 | 32,8 | 40,7 | 48,6 |
| Ø120 mm | 22,7 | 30,8 | 38,3 | 45,7 |
| Ø110 mm | 21,3 | 28,8 | 35,9 | 42,8 |
| Ø100 mm | 19,9 | 26,8 | 33,5 | 39,9 |
| Ø90 mm | 18,5 | 24,8 | 31,1 | 37,1 |
| Ø80 mm | 17,1 | 22,7 | 28,6 | 34,2 |
| Ø70 mm | 15,6 | 20,7 | 26,2 | 31,3 |
| Ø60 mm | 14,2 | 18,7 | 23,8 | 28,4 |
| Ø50 mm | 12,8 | 16,7 | 21,4 | 25,5 |
| Ø40 mm | 11,4 | 14,6 | 19,0 | 22,6 |
| Ø30 mm | 10,0 | 12,6 | 16,6 | 19,8 |
| Ø20 mm | 8,5 | 10,6 | 14,2 | 16,9 |
| Ø15 mm | 7,7 | 9,6 | 12,9 | 15,5 |
Applications
- On-site recycling (concrete/asphalt/brick)
- Rubble processing and road-base material
- Road construction and trench backfill
- Quarry and aggregate preparation
- Underwater concrete removal
- Fine aggregate production
Frequently Asked Questions
What does a crusher bucket do?
It crushes and sizes material on site for screening and reuse; used in recycling and mining.
Which materials is it used on?
Concrete, rock, rubble and similar; output size is adjustable.
How do I choose the class for my carrier?
Bucket class is set by carrier tonnage and desired output size. Share your site.
