Grey Series
HKM G15
- Carrier Weight (ton)
- 1,5-5
- Operating Weight (kg)
- 155
- Tool Diameter (mm)
- 53
- Input Power (kW)
- 6.6
- Operating Pressure (bar)
- 90-120
- Oil Flow (l/min)
- 25-50
- Impact Rate (bpm)
- 600-1100
Product Detail

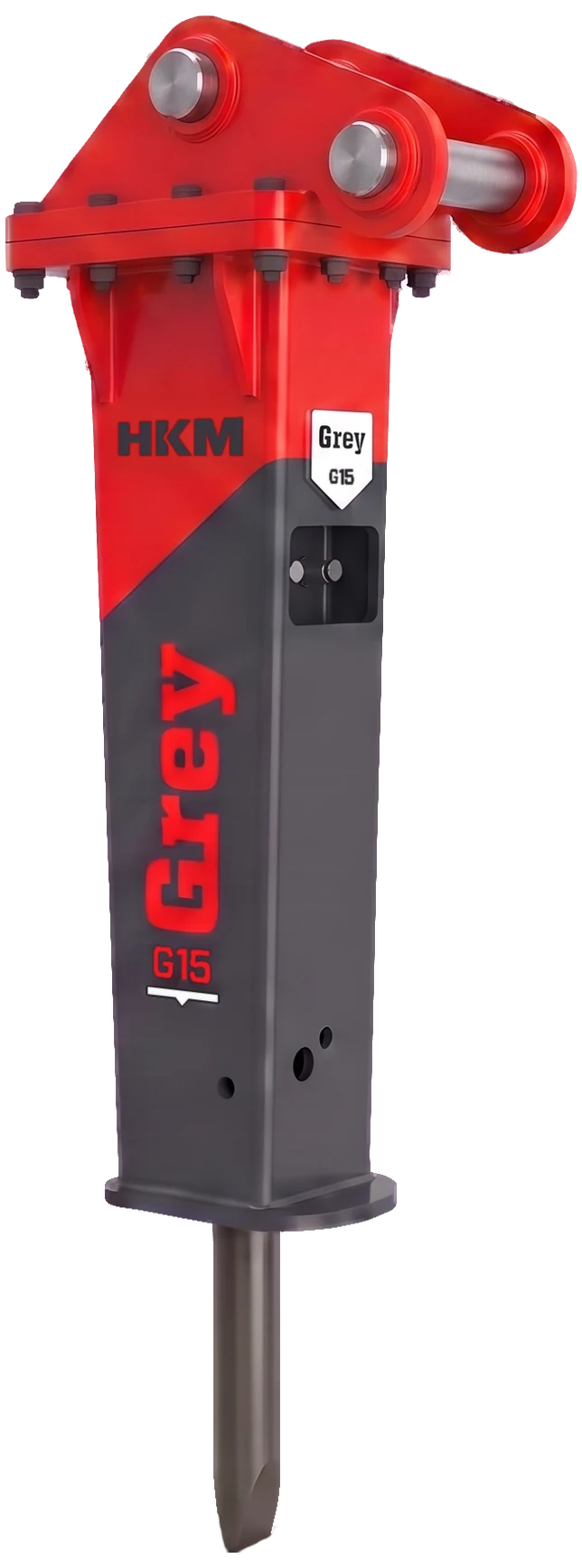

HKM GREY LINE MINI CLASS BREAKERS - G15
HKM Grey Line G15 is a Mini Class breaker powered by a gas-hydraulic hybrid system, standing out with strong impact performance, wide machine compatibility and low maintenance. Compatible with 1.5-5 t carriers, it is a reliable, long-life solution for intensive site conditions.
With 90-120 bar operating pressure and 25-50 L/min oil flow, a 155 kg operating weight and a 53 mm tool diameter, it offers high impact efficiency. The hybrid power unit (gas + hydraulic) improves fuel efficiency and flexibility, while long abrasion plates and an advanced damping system reduce vibration and spare-part consumption.
KEY FEATURES
- Compatible with 1.5-5 t carriers at a 155 kg operating weight and a 53 mm tool diameter
- Fuel efficiency and flexible use thanks to the gas-hydraulic hybrid power unit
- High impact efficiency with adjustable pressure settings
- Low vibration and low spare-part consumption with long abrasion plates and advanced damping
- Effective in both urban and heavy-demolition projects with a compact build
SET CONTENTS
- Hydraulic Breaker
- Mounting Bracket
- Breaker Tools (1 chisel, 1 moil point)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box
STANDARD EQUIPMENT
- Hybrid Power Unit (Hydraulic + Gas)
- Easy Part Change & Service
OPTIONAL EQUIPMENT
- Underwater Kit
- Reinforced Outer Housing
- Quick Coupler Adapter
Not Sure Which Breaker to Choose?
If you are unsure whether the breaker you need fits your machine, don't worry.
Send us your excavator or carrier make/model details, and our expert sales advisors will prepare and share the most suitable breaker and a tailored quote for you.
Frequently Asked Questions
Which excavators is the HKM G15 suitable for?
The G15 is designed for 1.5-5 t tracked and wheeled excavators, ideal for light urban and trenching applications.
What is the tool diameter?
This model uses a 53 mm breaker tool, providing optimum power for concrete breaking and rock excavation.
How does the hybrid power unit help?
The combined gas-and-hydraulic structure improves response time and converts your machine's hydraulic power into impact energy most efficiently, saving fuel.
