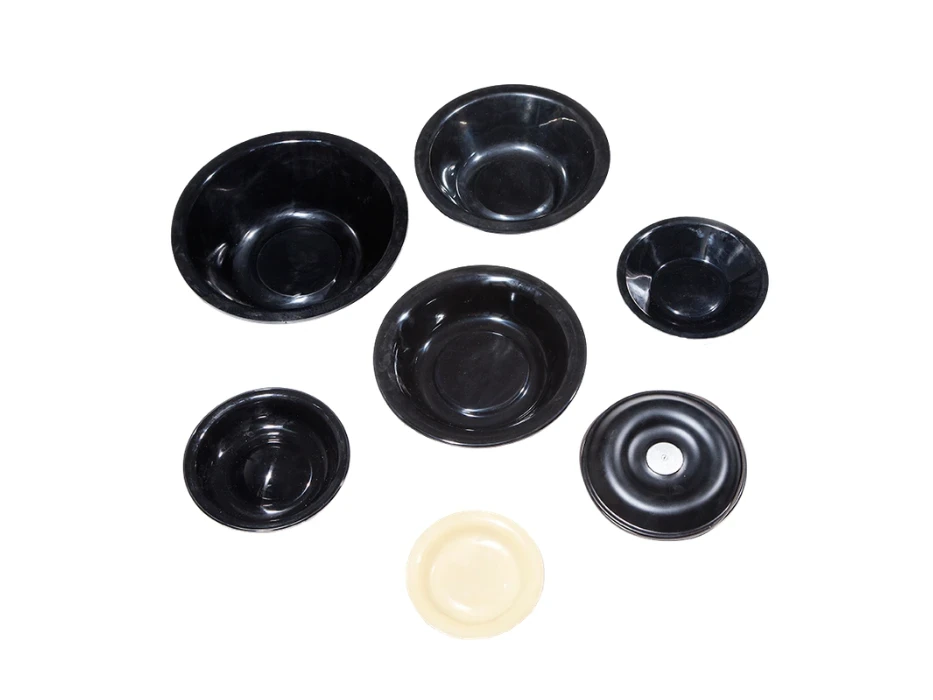

Diaphragm
Diaphragms across a wide model range; the membrane that perfectly separates gas from hydraulics and recovers energy on every blow. OEM material and tolerances, backed by HKM.
← Hydraulic Breaker Spare Parts
The diaphragm works between the gas (N₂) chamber and the hydraulic side, contributing to the energy storage-return cycle.
It is made from material resistant to high temperature and pressure; the right hardness and geometry determine impact efficiency.
Features
- Material resistant to high temperature/pressure
- Precise geometry for a stable energy cycle
- Reliable sealing at the gas-hydraulic boundary
- Full OEM compatibility
Manufacturing & Quality
Diaphragms are produced to the model’s gas diagram with material and geometry control.
Compatible Brands & Models
We manufacture this part for more than 130 brands and thousands of hydraulic breaker models; our wide range holds hundreds of alternatives to fit your brand and model. Pick the right product for your model in our store, or request custom production with a technical drawing or sample if it isn’t listed, we’ll find the exact part together.
Is the Diaphragm you need not on our production line?
If the Diaphragm for your brand or model is not in our stock or production schedule, simply share a sample or its technical drawing. Our engineering team reproduces the part to its original dimensions and tolerances; we confirm the production and delivery time as quickly as possible and supply it without delay, so your operation keeps running.
Frequently Asked Questions
What does the diaphragm do?
It separates the gas (N₂) chamber from the hydraulic side and contributes to the piston’s return energy, maintaining impact efficiency.
Are diaphragms under warranty?
Diaphragms are consumable (wear) parts continuously exposed to high pressure by the nature of operation; for this reason they are outside warranty coverage.
When will my order be delivered?
In-stock items ship fast; orders within Türkiye are usually delivered within 7 business days. Parts not in stock are produced in below-market lead times.
Can’t find the part you need?
Our sales team manufactures and supplies hydraulic breaker spare parts for all brands and models. Send a technical drawing or sketch and we’ll provide a fast, competitive quote.
