HKM EG05

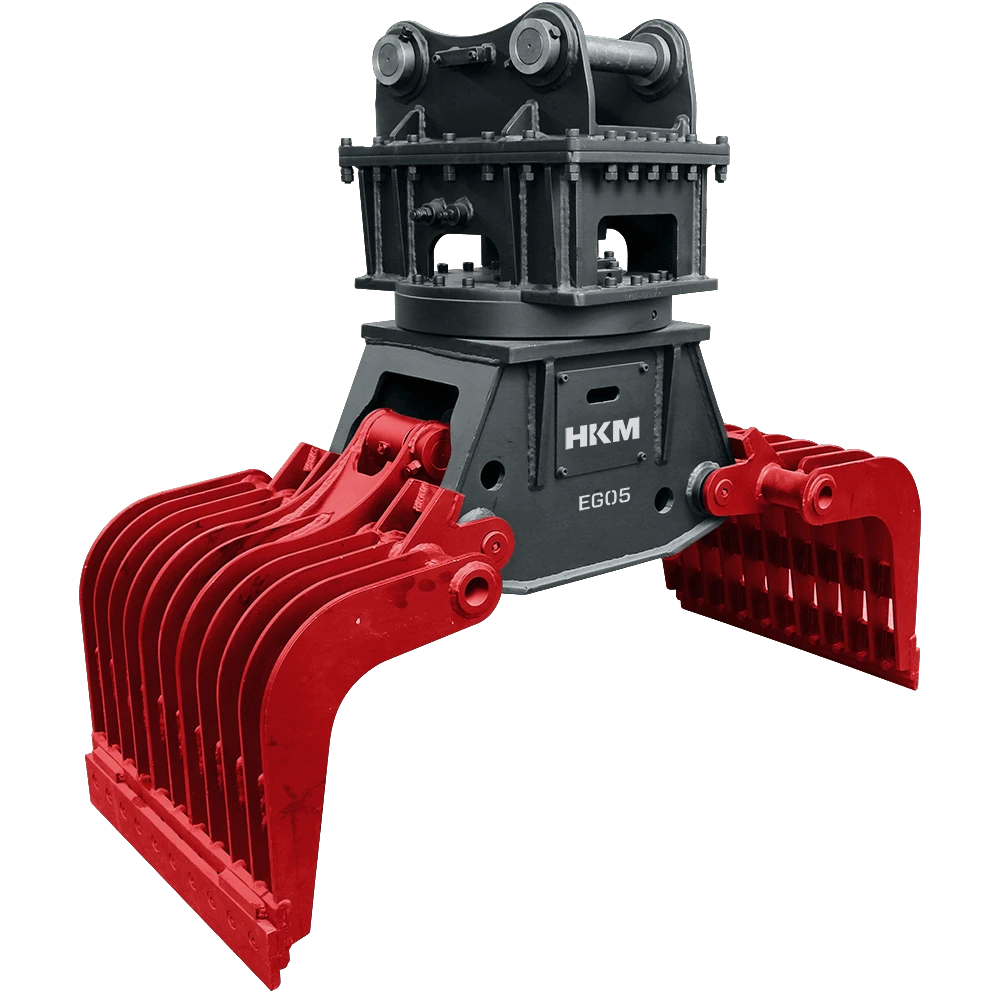

HKM EG05 Grapple

The HKM EG05 Grapple is designed specifically for 5-9 t class excavators. At 530 kg operating weight, it is optimized for high gripping performance and balanced operation even in tight spaces. Measuring 1,370 mm long and 620 mm wide with a 1,400 mm opening, it delivers powerful, smooth movement at 200-240 bar pressure and 100 L/min oil flow. 360° rotation is supplied as standard.

Advantages

• Optimized Cycle Efficiency: A large-bore single-cylinder design delivers fast, powerful synchronized jaw movement.
• Wide Jaw Reach: A zero-clearance shell profile ensures maximum grip even in tight spaces.
• Heavy-Duty Body: Reinforced steel construction and replaceable cutting edges provide long service life.
• Minimum Maintenance Time: Ground-level grease points and removable service panels make maintenance easy.
• 360° Rotation Mechanism: A hydraulic rotator supplied as standard enables flexible, fast positioning.

Applications

• Demolition: Primary demolition and on-site separation of reinforced concrete, walls and structural elements.
• Recycling & Waste Management: Separating, loading and transferring concrete, scrap metal, wood and plastic.
• Dismantling Light Structures: Safe, fast removal of wooden structures, fences and precast panels.
• Landscaping & Vegetation Clearing: Collecting and moving tree roots, stumps, branches and green waste.
• Material Handling & Site Cleanup: Sorting and moving pallets, stone, tiles and mixed rubble.

Key Features

• Reinforced Body Structure
• High-Torque Rotation System
• Double-Sided Wear-Resistant Cutting Edges
• Efficient Single-Cylinder Mechanism
• Slim, Zero-Clearance Profile

Optional Grapple Types

• Skeleton-Type Grapple: Lightweight build; ideal for rubble screening and aggressive separation.
• Perforated Grapple: Preferred for light-density materials requiring precise sorting.

All grapple types are made of high-strength, wear-resistant steel and can be changed easily on site.
