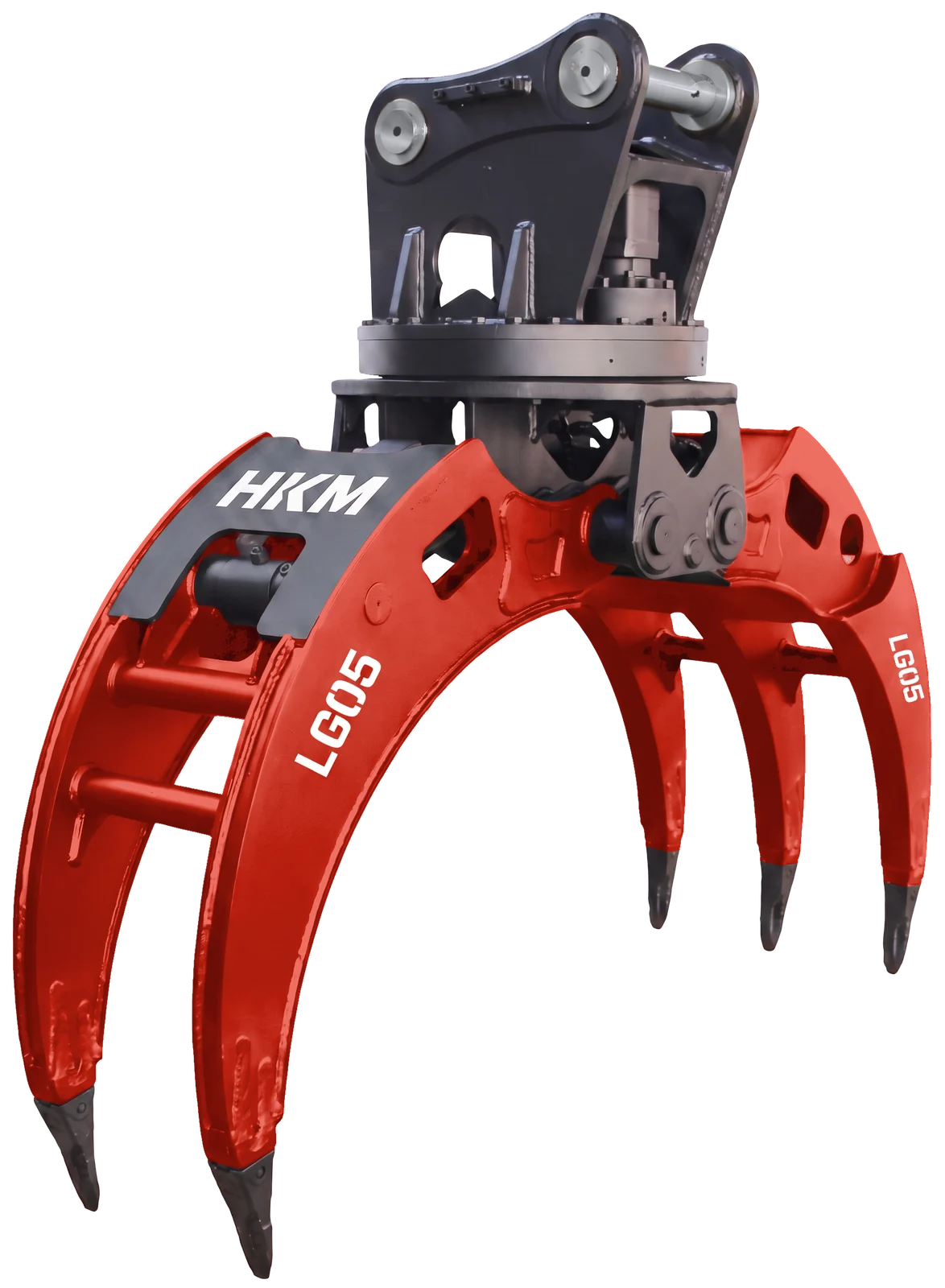

HKM LG05, Grapples

HKM LG05

An ideal compact log grapple for 4-5 t mini excavators. With a 360° hydraulic rotator, a 1,060 mm opening and a light yet durable build, it quickly moves logs, branches and brush on narrow forest roads and in landscaping. Its 2+3 leg design ensures a safe, balanced grip.

Carrier Weight (ton)

4-5

Operating Weight (kg)

320

Operating Pressure (bar)

110-140

Oil Flow (l/min)

30-55

Opening A (mm)

1060

Rotation Diameter (mm)

360

Product Detail

Product Features & Advantages

The HKM LG05 Log Grapple (timber attachment) is a compact forestry solution ideal for 4-5 t mini excavators. Also known as a "forest grapple" or "wood grab", it speeds up log handling and loading in tight areas. With a 1,060 mm opening and a 2+3 leg design, it holds single logs or brush bundles securely; 360° rotation comes as standard.

360° Hydraulic Rotation: Precise positioning for stacking logs or loading onto a truck.
Secure Grip: A 2+3 leg design holds single logs or brush bundles without slipping.
Sturdy Build: A light yet durable steel body lifts maximum load without upsetting machine balance.
Hose Protection: Hydraulic lines are shielded against impacts in forest conditions.

Applications

Forestry & Log Yards: Log collection, sorting and stacking.
Land Clearing: Moving felled trees and branches off site.
Biomass Handling: Collecting brush and clearing residue.

HKM GRAPPLE SET CONTENTS

HKM Log Grapple
Mounting Bracket (Pins Included)

Hydraulic Connection Hoses
User Manual and Warranty Certificate

Frequently Asked Questions

Is the rotation feature standard?

Yes, all LG-series grapples come with a 360° hydraulic rotation mechanism as standard.

Which carriers does it fit?

This model is designed for excavators in the 4-5 t class.

What is the HKM LG05 used for?

The HKM LG05 is a model in the Grapples family, used for safely gripping and handling rubble, rock, timber and scrap.
