HKM LG35, Grapples

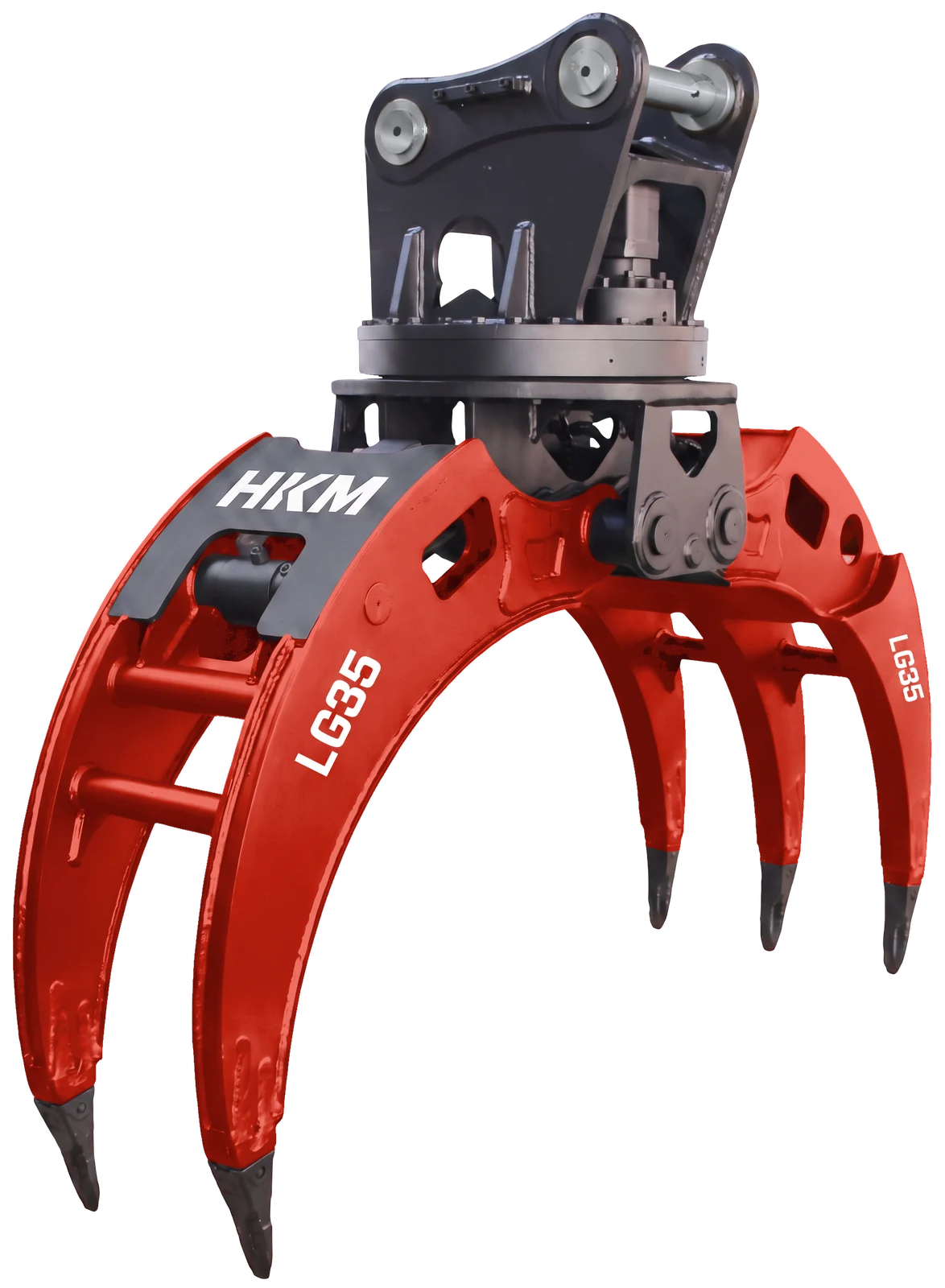

HKM LG35

The most powerful forestry grapple for large 28-35 t excavators. With a 2.5-metre (2,500 mm) jaw opening, it grabs multiple-log bundles and the heaviest logs in one go.

Carrier Weight (ton)

28-35

Operating Weight (kg)

2130

Operating Pressure (bar)

260-300

Oil Flow (l/min)

220-280

Opening A (mm)

2500

Rotation Diameter (mm)

752

Product Detail

Product Features & Advantages

The HKM LG35 Log Grapple is the most powerful forestry grapple, built for large 28-35 t excavators. With a 2.5-metre (2,500 mm) jaw opening, it grabs multiple-log bundles and the heaviest logs in one go, while 360° rotation provides precise stacking and loading.

360° Hydraulic Rotation: Precise positioning for stacking logs or loading onto a truck.
Secure Grip: A 2+3 leg design holds single logs or brush bundles without slipping.
Sturdy Build: A light yet durable steel body lifts maximum load without upsetting machine balance.
Hose Protection: Hydraulic lines are shielded against impacts in forest conditions.

Applications

Forestry & Log Yards: Log collection, sorting and stacking.
Land Clearing: Moving felled trees and branches off site.
Biomass Handling: Collecting brush and clearing residue.

HKM GRAPPLE SET CONTENTS

HKM Log Grapple
Mounting Bracket (Pins Included)

Hydraulic Connection Hoses
User Manual and Warranty Certificate

Frequently Asked Questions

Is the rotation feature standard?

Yes, all LG-series grapples come with a 360° hydraulic rotation mechanism as standard.

Which carriers does it fit?

This model is designed for excavators in the 28-35 t class.

What is the HKM LG35 used for?

The HKM LG35 is a model in the Grapples family, used for safely gripping and handling rubble, rock, timber and scrap.
