HKM PH25, Pulverizers

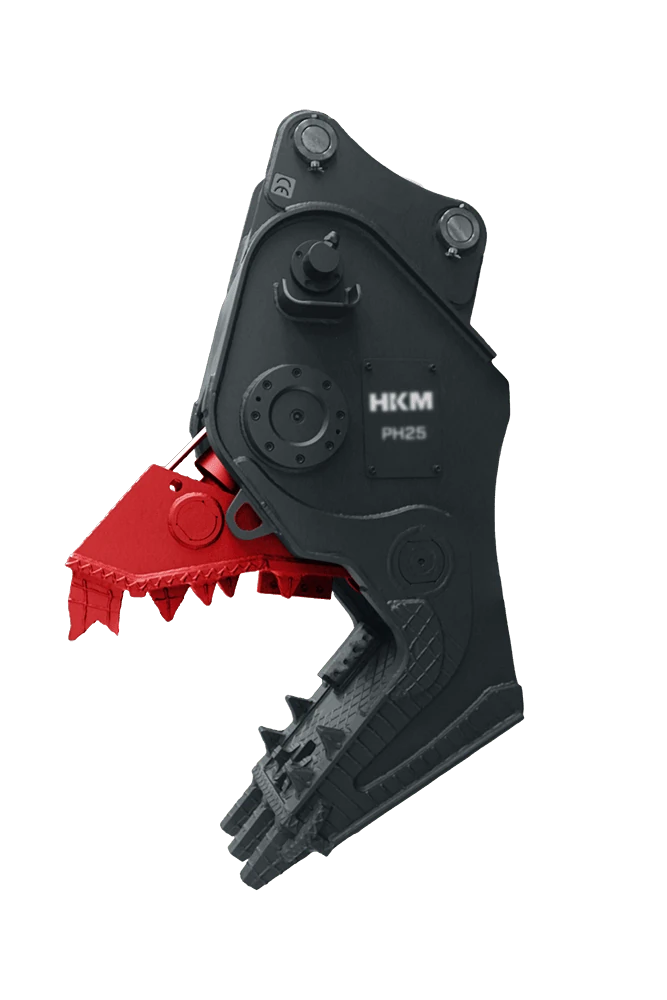

HKM PH25

A fixed-type pulverizer compatible with 20-30 t excavators; with a 1,700 kg operating weight, 95 t crushing force and an 810 mm jaw opening, it delivers fast, clean performance in on-pile secondary crushing and rebar separation.

Carrier Weight (ton)

20-30

Operating Weight (kg)

1700

Operating Pressure (bar)

320

Oil Flow (l/min)

200

Crushing Force (ton)

Opening A (mm)

810

Blade Length B (mm)

230

Height C (mm)

2267

Width D (mm)

590

Product Detail

Concrete Pulverizer | HKM PH25

The HKM PH25 is a fixed-type pulverizer optimized for picking material off the pile after demolition and for secondary crushing. Its angled, wide jaw geometry offers maximum grip on the pile while quickly crushing concrete and letting you hold and separate rebar between the jaws. Short cutting blades neatly cut long rebar and wire; the compact overall length gives the operator high control in tight spaces.

With its simple hydraulic connection, strong closing force and low service times, the PH25 noticeably boosts productivity at recycling sites, in site cleanup and in pre-transport size reduction.

Key Features

Fixed design & large-volume cylinder for high closing force
Angled, extra-wide jaws - strong grip on the pile and fast crushing
Rebar-holding tooth pattern; rebar is held in the jaw and dropped on a separate pile
Replaceable short blades - help cut long rebar and wire
Compact overall length - precise machine control and high maneuverability
Bolted teeth and wear plates - fast on-site maintenance, low operating cost

Applications

Pile crushing and material separation
Size reduction for recycling; volume reduction before transport
Site cleanup and faster loading

Benefits

High tonnes/hour output with short cycle times
Lighter, simpler line plumbing with no need for a rotating head
Time savings in loading and recycling by cleanly separating rebar

Optional Equipment

Wear-Protection Kit: Hardox™/AR400 body liners, bolted side plates
Dust-Suppression Line: ready connection for misting nozzles

Frequently Asked Questions

What is the HKM PH25 used for?

The HKM PH25 is a model in the Pulverizers family, used for crushing concrete while separating the rebar in demolition and recycling.

Which carrier is the HKM PH25 suitable for?

The HKM PH25 is built to match carriers in the 20-30 ton class. Share your machine tonnage and we will confirm the right model.

What are the technical specifications of the HKM PH25?

Key technical values of the HKM PH25: Operating Weight (kg) 1700, Oil Flow (l/min) 200, Operating Pressure (bar) 320, Crushing Force (ton) 95. The full spec table is on the product page and in the brochure.
