HKM PH25M, Pulverizers

HKM PH25M

A magnet-equipped secondary pulverizer for 20-24 t excavators; with a 2,000 kg weight, 80 t crushing force and an 800 mm opening, it collects rebar and scrap in a single pass while crushing, speeding up cleanup and sorting.

Carrier Weight (ton)

20-24

Operating Weight (kg)

2000

Operating Pressure (bar)

300

Oil Flow (l/min)

200

Crushing Force (ton)

Opening A (mm)

800

Blade Length B (mm)

180

Height C (mm)

2275

Width D (mm)

600

Outer Diameter E (mm)

600

Product Detail

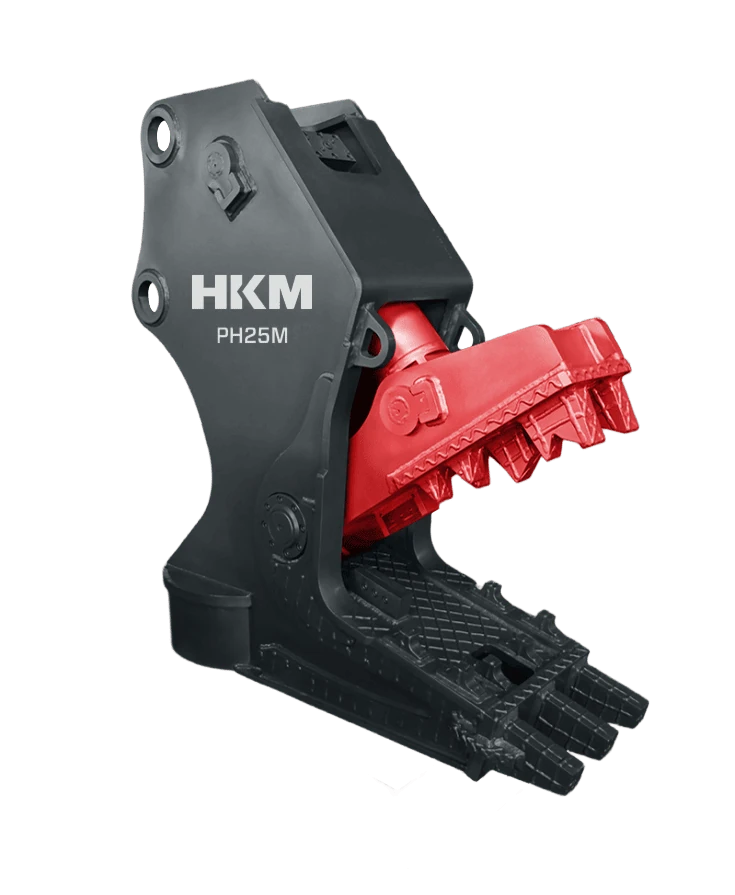

Concrete Pulverizer | HKM PH25M (Magnet Secondary)

The HKM PH25M is a secondary-type pulverizer fitted with an integrated magnet plate to automatically collect rebar and scrap steel at the same time as crushing. As the concrete is crushed it lifts and gathers the steel, providing a crush-and-separate workflow in a single pass and noticeably reducing cleanup and sorting times. Sharing the same wear-part concept as the PH25, it offers fast on-site maintenance and low service time.

Key Features

Integrated magnet plate + control unit (power supply depends on the carrier)
Crush and separate in a single pass; fewer attachment changes
Shared wear-part architecture with the PH25 - easy service
Protected hydraulic and cable routing

Advantages

Collects steel while crushing; shortens work cycles
Less equipment needed on small, tight sites
Low maintenance time and operating cost

Applications

Recycling sites
Heavily reinforced demolition
Speeding up site cleanup

Frequently Asked Questions

What is the HKM PH25M used for?

The HKM PH25M is a model in the Pulverizers family, used for crushing concrete while separating the rebar in demolition and recycling.

Which carrier is the HKM PH25M suitable for?

The HKM PH25M is built to match carriers in the 20-24 ton class. Share your machine tonnage and we will confirm the right model.

What are the technical specifications of the HKM PH25M?

Key technical values of the HKM PH25M: Operating Weight (kg) 2000, Oil Flow (l/min) 200, Operating Pressure (bar) 300, Crushing Force (ton) 80. The full spec table is on the product page and in the brochure.
