HKM PH25R, Pulverizers

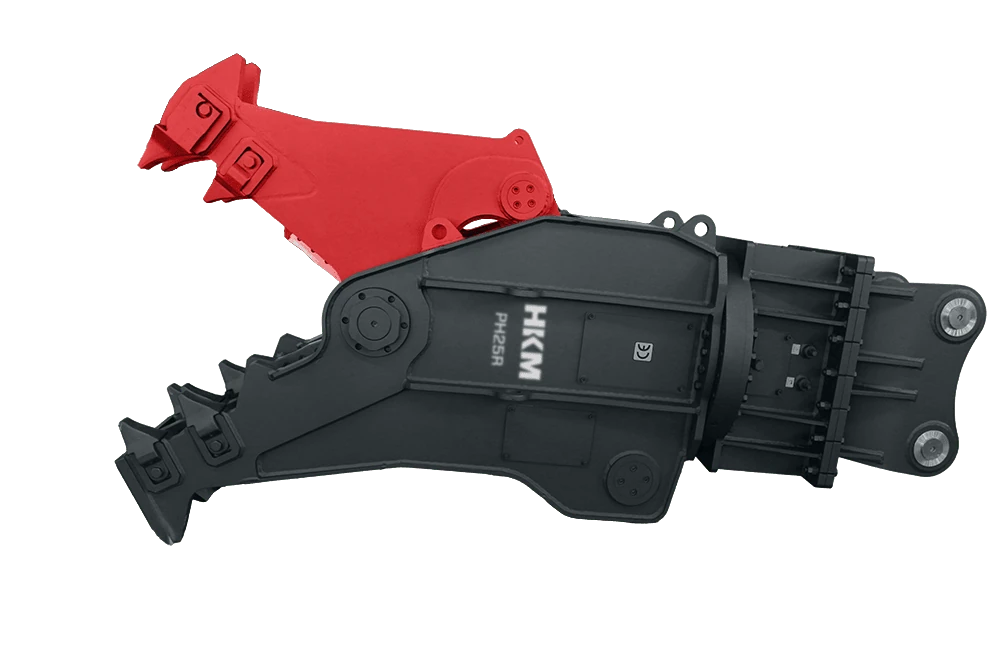

HKM PH25R

A 360° rotating-head primary pulverizer for 20-30 t carriers; with a 2,250 kg weight, 150 t crushing force and a 765 mm opening, it delivers fast primary breaking on walls, beams and slabs, precise positioning and low service time.

Carrier Weight (ton)

20-30

Operating Weight (kg)

2250

Operating Pressure (bar)

300

Oil Flow (l/min)

200

Crushing Force (ton)

150

Opening A (mm)

765

Blade Length B (mm)

180

Height C (mm)

2300

Width D (mm)

550

Rotating Pressure (bar)

120

Rotating Oil Flow (l/min)

40-60

Product Detail

Concrete Pulverizer | HKM PH25R (Rotating Primary)

The HKM PH25R is a primary demolition pulverizer designed to strip concrete directly off the structural element while catching and separating the rebar. Its high-torque 360° hydraulic rotating head lets you fine-tune the approach angle, improving accuracy, cycle efficiency and job-site safety. Deep, wide jaws, a piercing tooth layout and an optimized hydraulic circuit ensure short open-close times. Bolted teeth and side wear plates allow fast on-site maintenance.

Key Features

High-torque 360° hydraulic rotating head - stable positioning
Deep, wide jaws with a piercing tooth layout for fast primary breaking
Optimized hydraulic circuit for short cycle times
Bolted teeth and side wear plates - fast in-place replacement
Protected cylinder rods and a guarded working area

Advantages

Faster progress and high productivity in primary demolition
Lower collateral damage in urban and renovation work
Low service time and easy on-site maintenance

Applications

Wall, beam and slab removal
Façade removal, surface cleaning
Selective demolition and pre-strengthening removal

Frequently Asked Questions

What is the HKM PH25R used for?

The HKM PH25R is a model in the Pulverizers family, used for crushing concrete while separating the rebar in demolition and recycling.

Which carrier is the HKM PH25R suitable for?

The HKM PH25R is built to match carriers in the 20-30 ton class. Share your machine tonnage and we will confirm the right model.

What are the technical specifications of the HKM PH25R?

Key technical values of the HKM PH25R: Operating Weight (kg) 2250, Oil Flow (l/min) 200, Operating Pressure (bar) 300, Crushing Force (ton) 150. The full spec table is on the product page and in the brochure.
