HKM RP40, Rippers

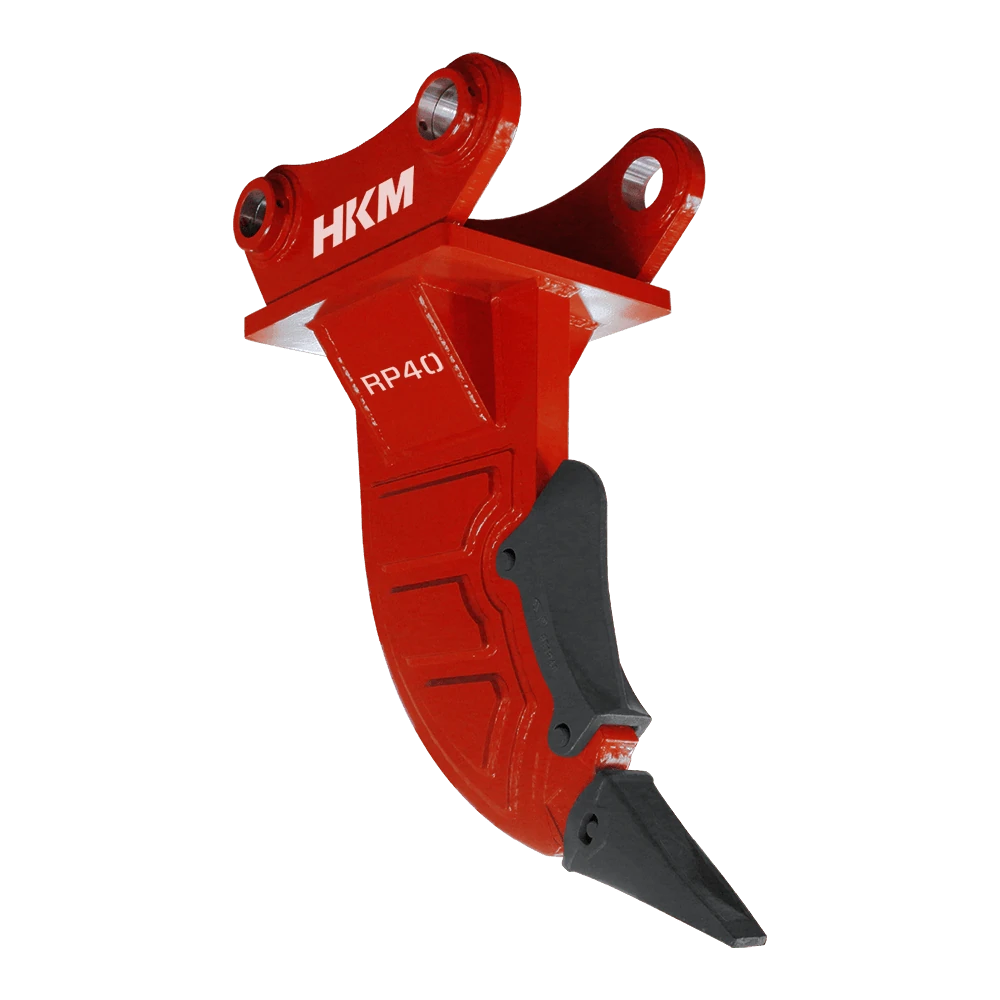

HKM RP40

The HKM RP40 Ripper is developed for 50-65 t machines. With a 1,320 kg operating weight and 1,788 mm height, it provides superior durability even in the toughest ground.

Carrier Weight (ton)

50-65

Operating Weight (kg)

1320

Pin-to-Pin Distance A (mm)

600

Width B (mm)

1227

Height C (mm)

1788

Pin Diameter D (mm)

110-130

Dipper Width E (mm)

430-550

Plate Thickness (mm)

100

Teeth Model (type)

D11

Product Detail

HKM RP40 Ripper

The HKM RP40 Ripper is developed for 50-65 t machines. With a 1,320 kg operating weight and a 1,788 mm body height, it provides superior durability even in the toughest ground. Its high-strength manganese-steel body and D11 screw-connected teeth ensure long life, while reinforced mounting brackets resist high bending forces.

Advantages

Increased Efficiency: Breaks obstacles quickly, completing work with fewer passes over the same ground.
Low Operating Costs: Reduced labor and fuel consumption lower costs.
Long Service Life: High material quality and a modular design boost durability.
Easy Maintenance: A sealed shaft pin and replaceable wear parts keep maintenance to a minimum.

Applications

Compacted & Hardened Soils: High-density soil layers that resist standard excavation equipment
Frozen Ground & Permafrost: Iced soil conditions at sub-zero temperatures
Soft Rock Masses & Weathered Stone: Cracked or loosened rock conditions
Loose Geological Material: Sandy, silty or mixed fills in trenching and site preparation

Key Features

High-Strength Manganese Steel Body: Provides outstanding resistance to wear
Grease-Channel Alloy Shaft Pin: Superior durability and long life with internal lubrication channels
Easily Replaceable Teeth: Fast removal and fitting without special equipment
Durable Mounting Bracket: Extra-resistant design against high bending forces

Frequently Asked Questions

What is the HKM RP40 used for?

The HKM RP40 is a model in the Rippers family, used for ripping hard ground, rock and frozen soil with high breakout force.

Which carrier is the HKM RP40 suitable for?

The HKM RP40 is built to match carriers in the 50-65 ton class. Share your machine tonnage and we will confirm the right model.

What are the technical specifications of the HKM RP40?

Key technical values of the HKM RP40: Operating Weight (kg) 1320. The full spec table is on the product page and in the brochure.
