Ripper
HKM RP50
- Carrier Weight (ton)
- 65-90
- Operating Weight (kg)
- 1810
- Pin-to-Pin Distance A (mm)
- 670
- Width B (mm)
- 1356
- Height C (mm)
- 1989
- Pin Diameter D (mm)
- 110-120
- Dipper Width E (mm)
- 450-600
- Plate Thickness (mm)
- 100
- Teeth Model (type)
- D11
Product Detail

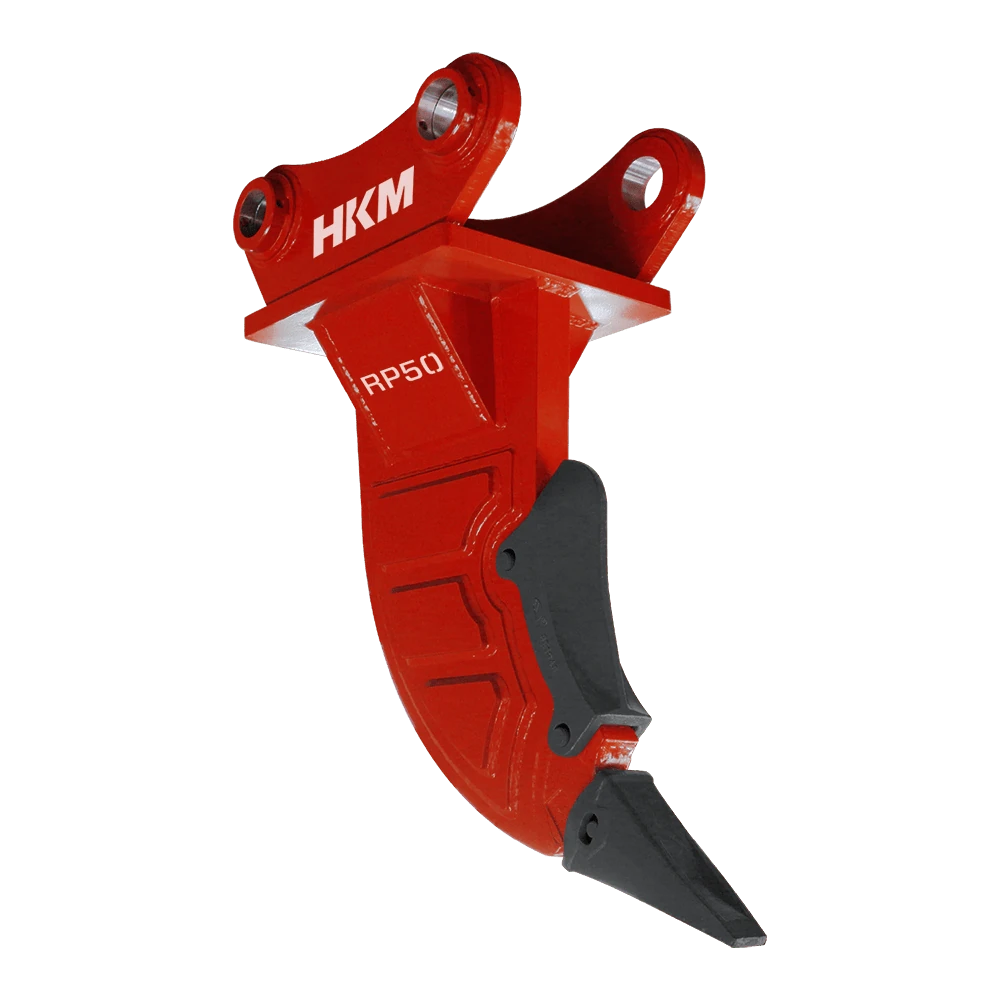

HKM RP50 Ripper
The HKM RP50 Ripper is the largest model, designed for use with 65-90 t excavators. With a 1,810 kg operating weight and a 1,989 mm body height, it offers unrivaled ripping power. Its high-strength manganese-steel body and D11 teeth provide outstanding durability and fast maintenance, while reinforced brackets withstand extreme loads.
Advantages
- Increased Efficiency: Breaks obstacles quickly, completing work with fewer passes over the same ground.
- Low Operating Costs: Reduced labor and fuel consumption lower costs.
- Long Service Life: High material quality and a modular design boost durability.
- Easy Maintenance: A sealed shaft pin and replaceable wear parts keep maintenance to a minimum.
Applications
- Compacted & Hardened Soils: High-density soil layers that resist standard excavation equipment
- Frozen Ground & Permafrost: Iced soil conditions at sub-zero temperatures
- Soft Rock Masses & Weathered Stone: Cracked or loosened rock conditions
- Loose Geological Material: Sandy, silty or mixed fills in trenching and site preparation
Key Features
- High-Strength Manganese Steel Body: Provides outstanding resistance to wear
- Grease-Channel Alloy Shaft Pin: Superior durability and long life with internal lubrication channels
- Easily Replaceable Teeth: Fast removal and fitting without special equipment
- Durable Mounting Bracket: Extra-resistant design against high bending forces
Frequently Asked Questions
What is the HKM RP50 used for?
The HKM RP50 is a model in the Rippers family, used for ripping hard ground, rock and frozen soil with high breakout force.
Which carrier is the HKM RP50 suitable for?
The HKM RP50 is built to match carriers in the 65-90 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM RP50?
Key technical values of the HKM RP50: Operating Weight (kg) 1810. The full spec table is on the product page and in the brochure.
