Drum Cutters
HKM DC40
- Carrier Weight (ton)
- 30-50
- Operating Weight (kg)
- 2420
- Required Operation Power (kW)
- 125
- Oil Flow (l/min)
- 300-400
- Max. Operating Pressure (bar)
- 320
- Max Torque (320 Bar) DC
- 30000
- RPM at 40 L/min
- 65
- Drum Diameter (mm)
- 670
- Drum Width (mm)
- 460
- Cutter Bits (pcs)
- 72
- Max Power Output (kW)
- 140
- Max Flow (l/min)
- 450
- Pressure (bar)
- ≤315 bar
- Max Torque (350 Bar) ER
- 27900
- Max Torque (380 Bar) KR
- 37833
- Output Torque (Nm)
- 30300 Nm@320bar
Product Detail

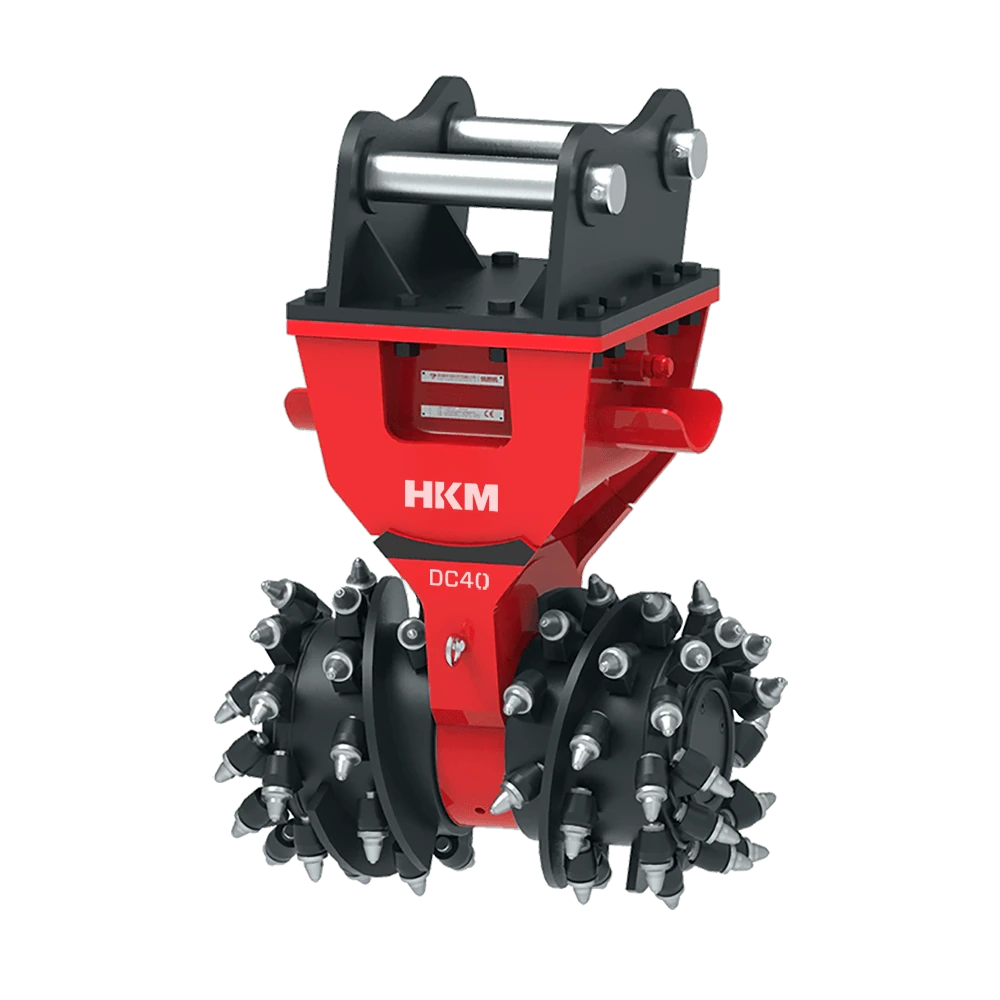

HKM DRUM CUTTERS - DC40
The HKM DC40 Drum Cutter is the most powerful and largest model in the series, developed specifically for 30-50 t class excavators. With a 2,420 kg operating weight and a maximum torque capacity of up to 30,000 Nm, it delivers high efficiency in hard rock, reinforced concrete and mining applications.
Running in a 300-400 L/min oil-flow range, the system meets a 125 kW power requirement and sustains high torque even at low speed. Equipped with 72 cutter bits per drum, the DC40 breaks material homogeneously and precisely, producing a backfill-ready granular structure.
Designed for heavy-duty conditions, this model provides a top-tier solution especially on high-strength projects such as tunneling, rock carving, mine surface work and deep foundation excavation.
KEY FEATURES
- The most powerful model in its class with 30,000 Nm maximum torque

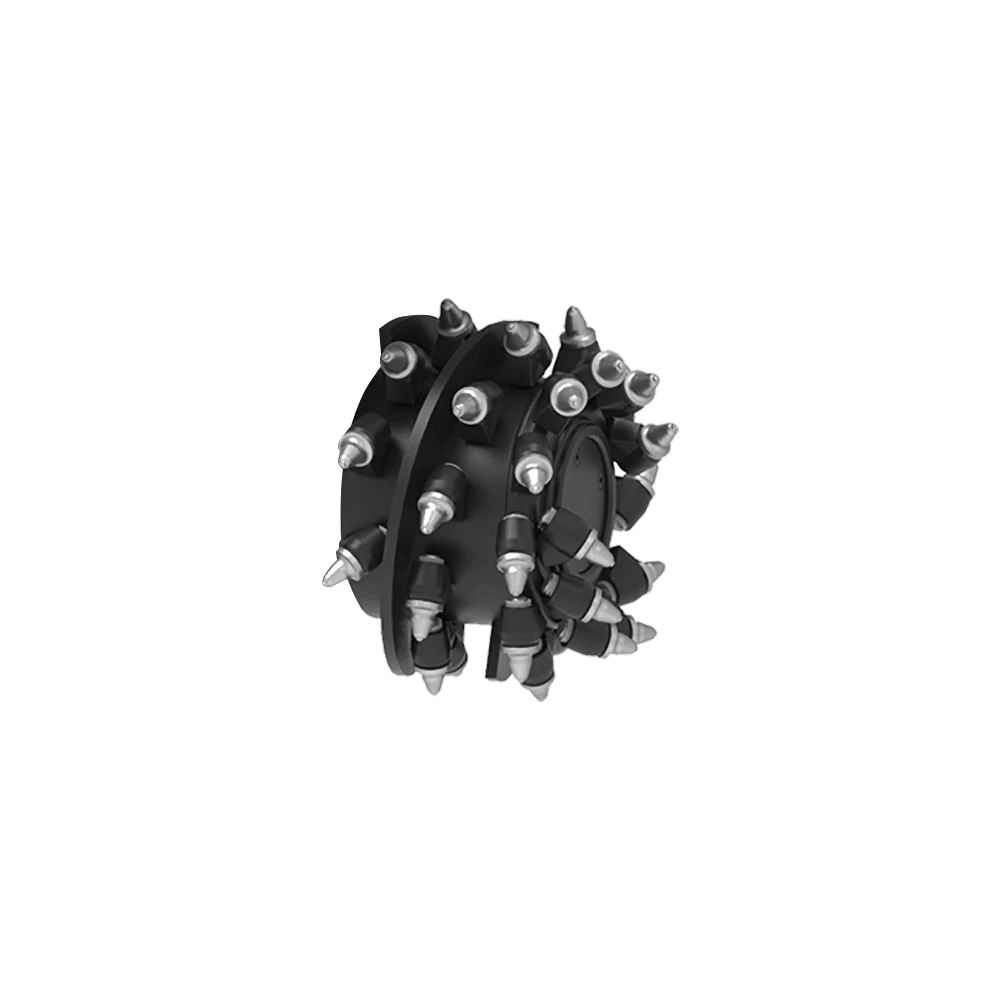

- Fast, balanced cutting with 72 cutter bits
- Durable build that meets high flow and power demands
- Operator- and equipment-friendly low vibration and noise
- Long service life on mining and infrastructure sites
APPLICATIONS
- Carving of hard rock and reinforced-concrete surfaces
- Deep foundation excavation and infrastructure tunneling
- Quarry preparation and surface correction
- Energy and water-structure projects
OPTIONAL EQUIPMENT
- Underwater Kit: Fully sealed electrical/hydraulic connections and corrosion-resistant components for wet, high-humidity environments.
- Wear-Protection Kit: Hardox™/AR400 body liners and oversized picks for abrasive ground.
Frequently Asked Questions
What is the HKM DC40 used for?
The HKM DC40 is a model in the Drum Cutters family, used for controlled, low-vibration cutting and profiling in rock, concrete and frozen ground.
Which carrier is the HKM DC40 suitable for?
The HKM DC40 is built to match carriers in the 30-50 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM DC40?
Key technical values of the HKM DC40: Operating Weight (kg) 2420, Oil Flow (l/min) 300-400, Max Flow (l/min) 450, Max. Operating Pressure (bar) 320. The full spec table is on the product page and in the brochure.
