Hydraulic Auger Sets
HKM AG150
- Carrier Weight (ton)
- 13 - 17
- Drive Unit Weight (kg)
- 167
- Torque (Nm)
- 15000
- Rotary Speed (RPM)
- 20 - 43
- Input Power (kW)
- 21,3 - 68,0
- Oil Flow (l/min)
- 80 - 170
- Operating Pressure (bar)
- 160 - 240
- Shaft Diameter (mm)
- 75 (square)
- Auger Diameter (mm)
- 150 - 900
- Auger Length (mm) (recm.)
- 1750
Product Detail
HKM AG150 - Hydraulic Auger Set
Power and Stability for Heavy-Duty Applications
The HKM AG150 Hydraulic Auger Set is designed for carrier machines between 13 and 17 tonnes and delivers uninterrupted performance even in the toughest ground conditions with its 15,000 Nm torque capacity. Its steady 20-43 RPM speed range enables controlled, powerful drilling.
Its 80-170 L/min oil flow and 160-240 bar operating pressure match powerful hydraulic systems perfectly. With its 75 mm square shaft and Ø150-Ø900 mm auger diameter range, it covers a wide application scale: construction, infrastructure, mining and heavy-duty agriculture.
Set Contents:

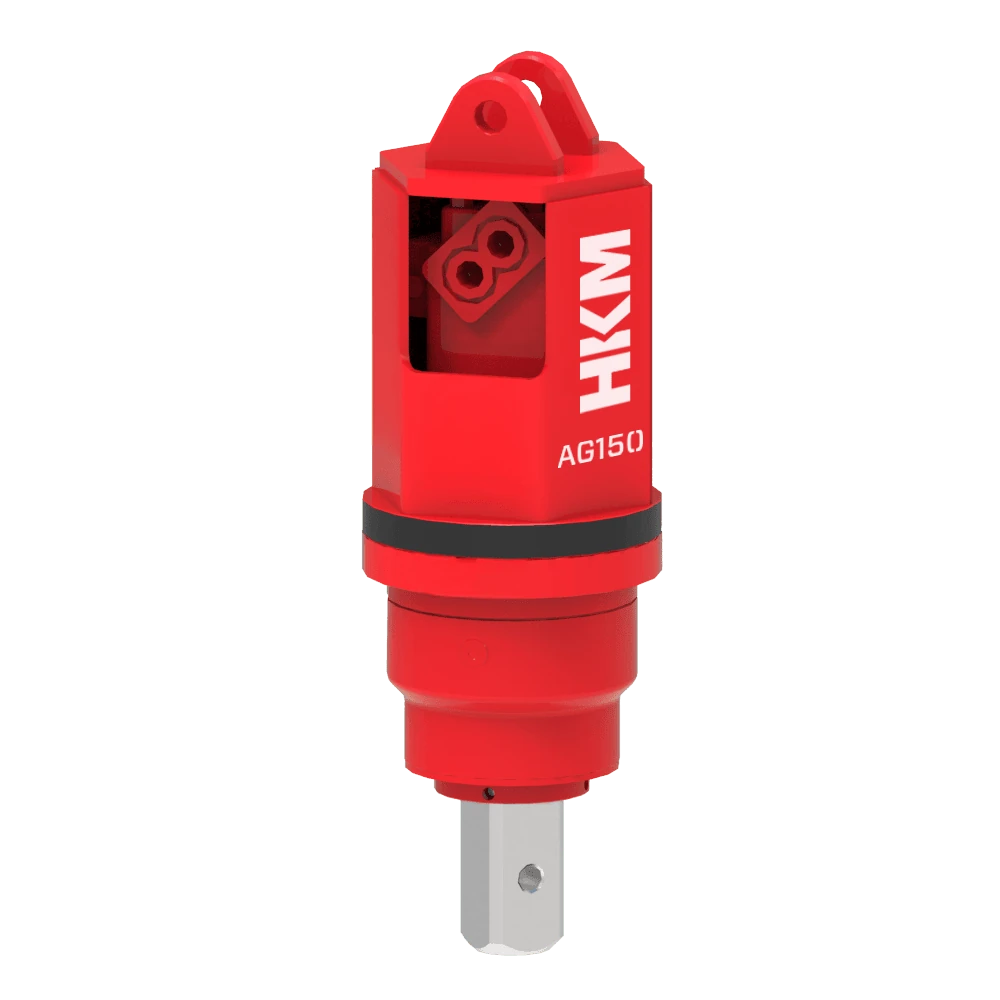

- Hydraulic Auger Drive Unit
- Mounting Bracket (Hanger) - Double-Pin / Single-Pin / etc.

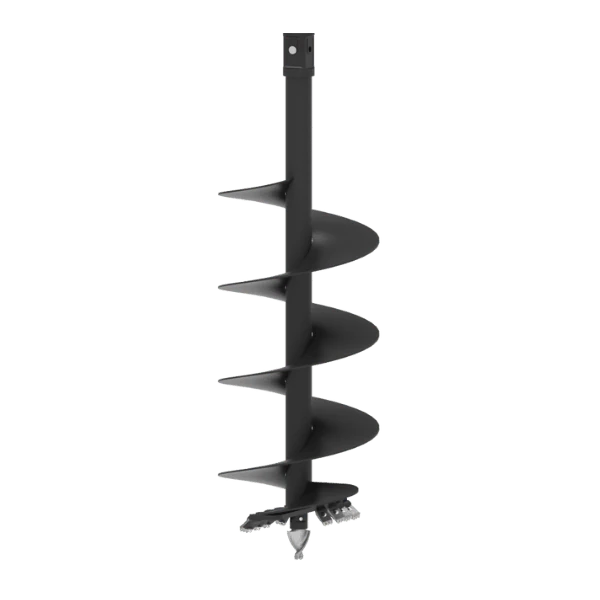

- Auger Bit Ø300 mm L:1200 mm

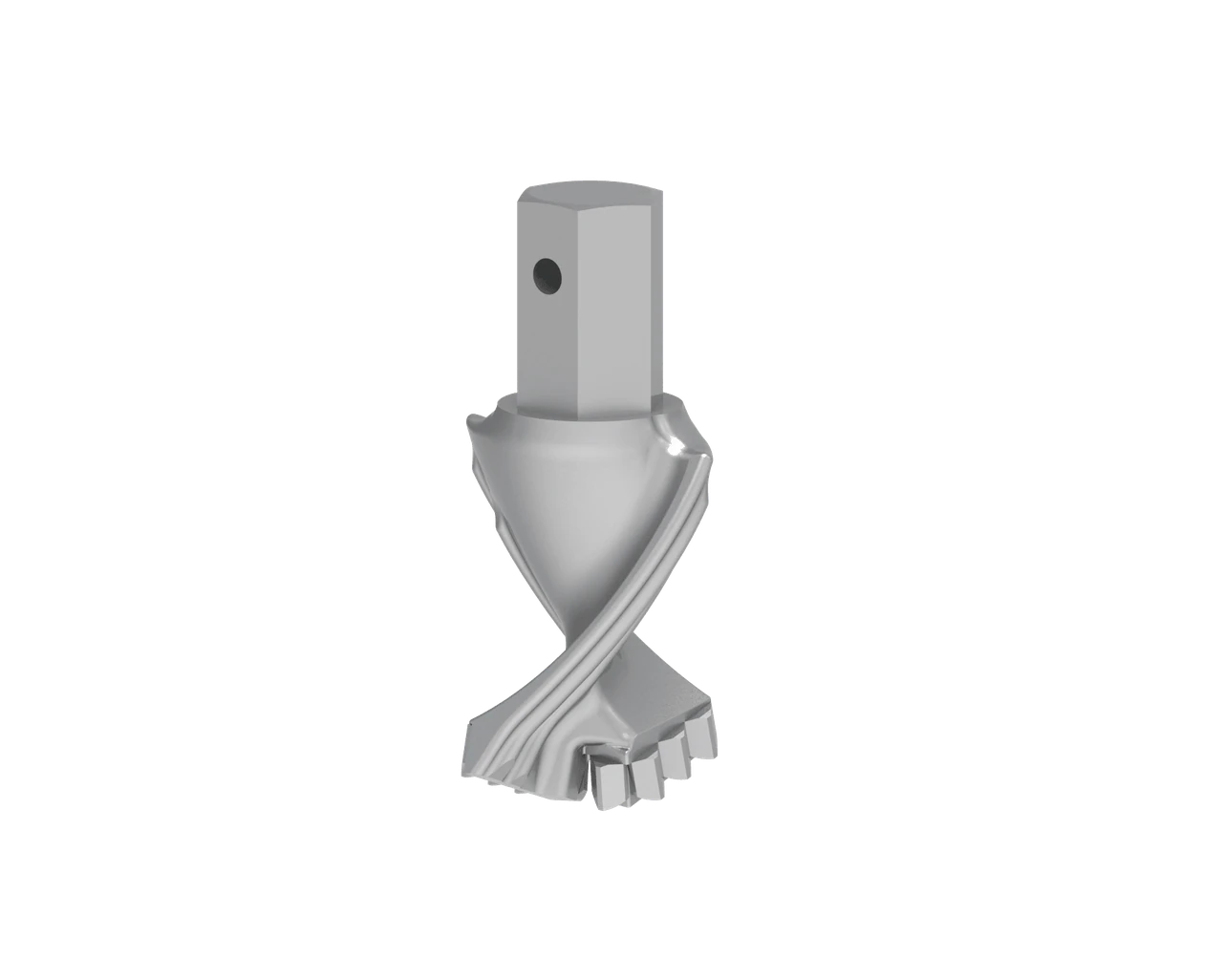

- Pilot Bit
- Hydraulic Connection Hoses
- Carrier Connection Pins
Key Advantages of the AG150:
- Superior drilling power with 15,000 Nm torque
- Full compatibility with heavy-duty machines
- Long-life, durable construction
- Flexible use with a wide bit selection
- Fast setup, low maintenance cost
Applications: Heavy foundation excavation, power-pole or large fence installation, geotechnical work, hard-ground drilling
Frequently Asked Questions
What is the HKM AG150 used for?
The HKM AG150 is a model in the Hydraulic Augers family, used for drilling fast, precise holes for piling, posts, tree planting and foundation work.
Which carrier is the HKM AG150 suitable for?
The HKM AG150 is built to match carriers in the 13 - 17 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM AG150?
Key technical values of the HKM AG150: Oil Flow (l/min) 80 - 170, Operating Pressure (bar) 160 - 240, Input Power (kW) 21,3 - 68,0, Torque (Nm) 15000. The full spec table is on the product page and in the brochure.
