Hydraulic Auger Sets
HKM AG20
- Carrier Weight (ton)
- 1 - 2,5
- Drive Unit Weight (kg)
- 54
- Torque (Nm)
- 2000
- Rotary Speed (RPM)
- 40 - 92
- Input Power (kW)
- 2,5 - 18,7
- Oil Flow (l/min)
- 22 - 55
- Operating Pressure (bar)
- 70 - 205
- Shaft Diameter (mm)
- 65 (round)
- Auger Diameter (mm)
- 100 - 400
- Auger Length (mm) (recm.)
- 1200
Product Detail
HKM AG20 - Hydraulic Auger Set
Maximum Efficiency for Mini Machines
The HKM AG20 Hydraulic Auger Set is designed specifically for mini excavators and compact machines between 1 and 2.5 tonnes. Standing out with its high torque capacity despite its compact build, the AG20 delivers 2,000 Nm of torque and a 40-92 RPM speed range for surprising performance in ground drilling.
Thanks to its 22-55 L/min oil flow and 70-205 bar operating pressure, it works efficiently even on machines with low hydraulic power, saving fuel while speeding up the job. With its 65 mm round shaft and auger bits from 100-400 mm in diameter, it suits fence/post installation, landscaping, agriculture and small-scale foundation drilling.
Set Contents:

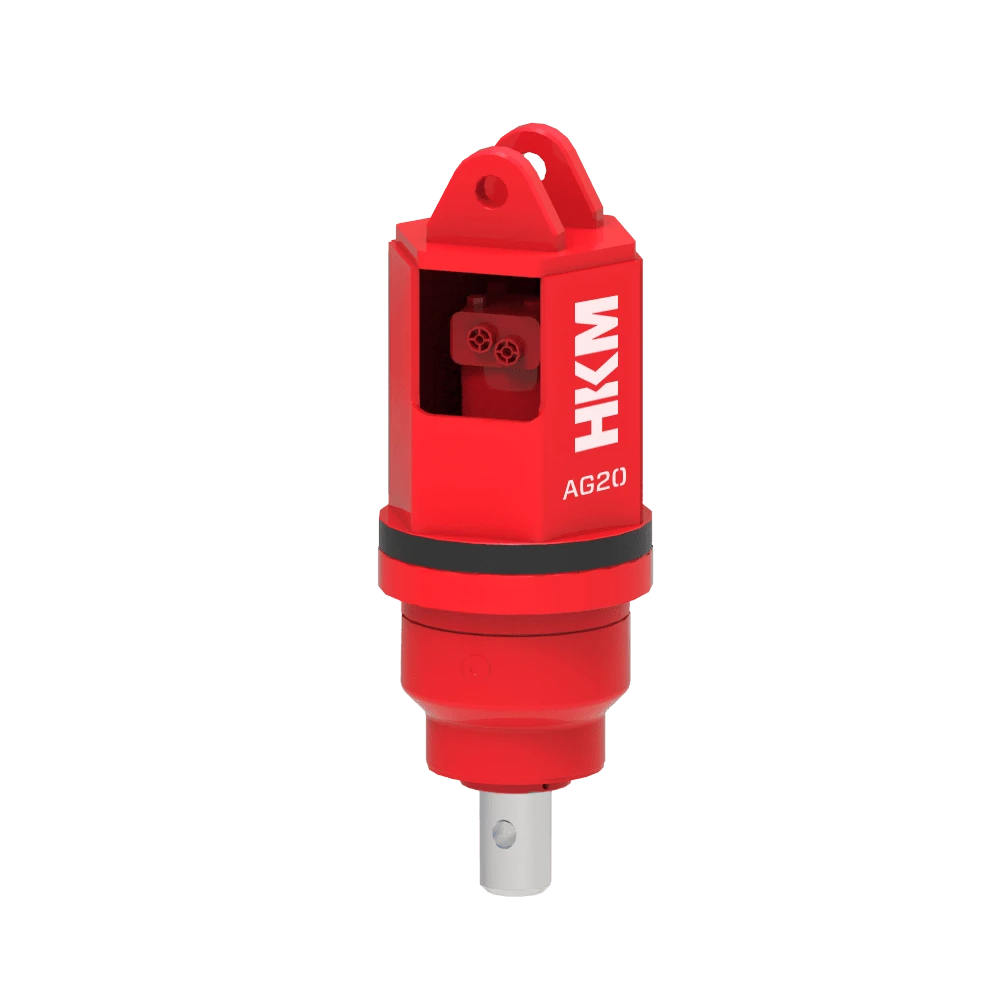

- Hydraulic Auger Drive Unit
- Mounting Bracket (Hanger) - Double-Pin / Single-Pin / etc.

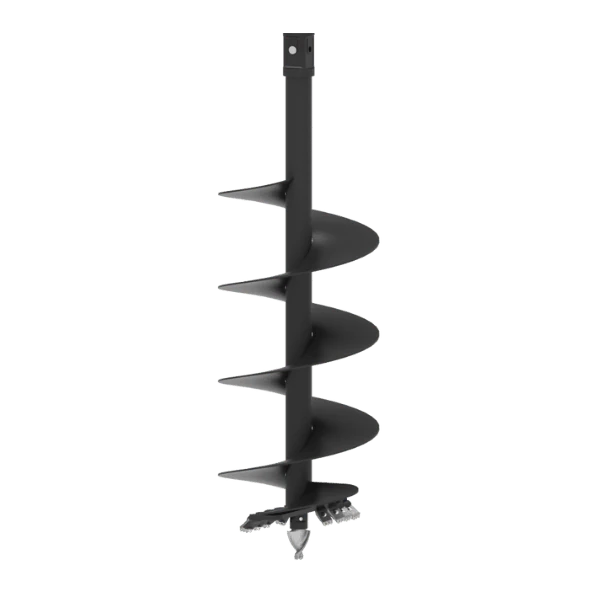

- Auger Bit Ø300 mm L:1200 mm

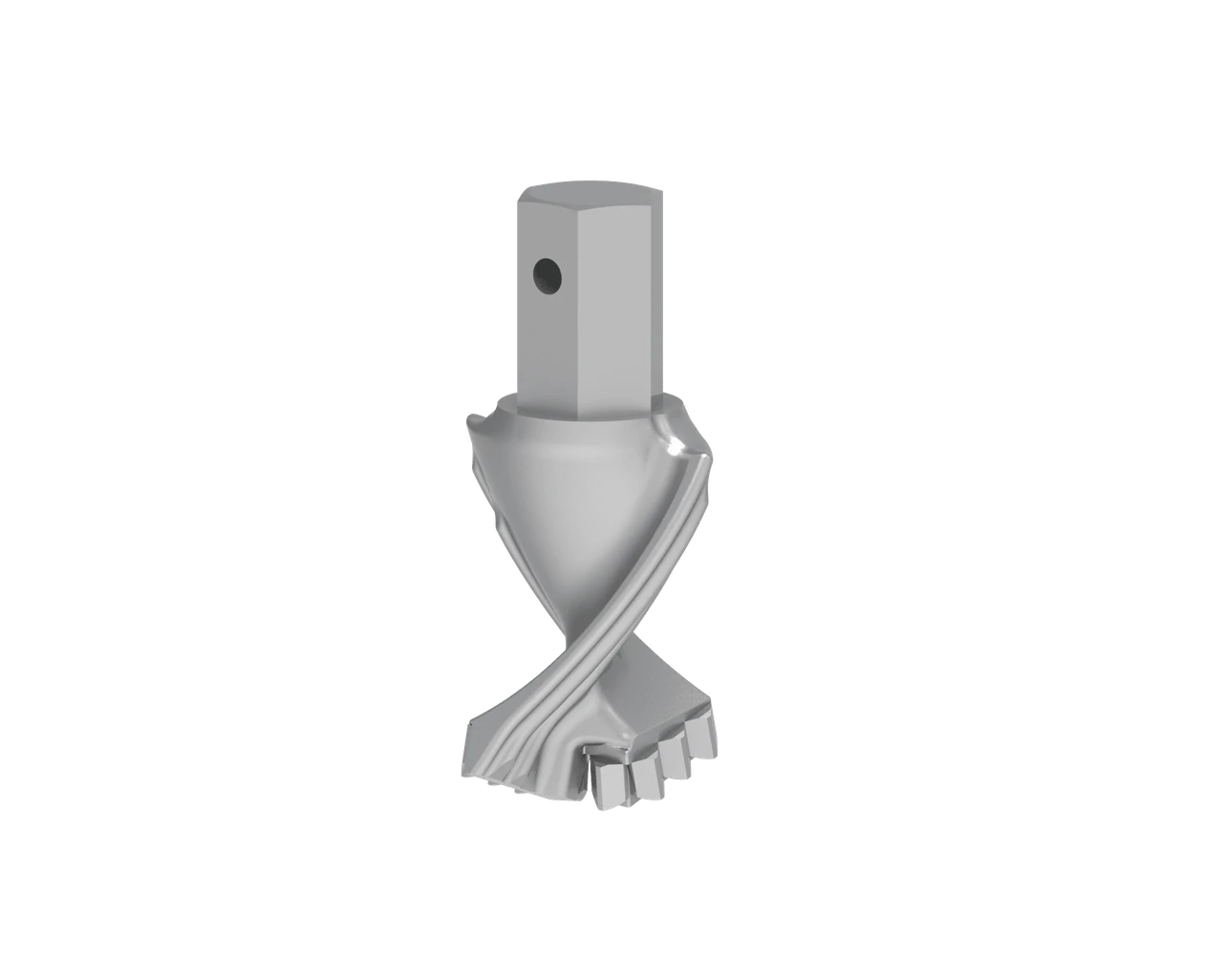

- Pilot Bit
- Hydraulic Connection Hoses
- Carrier Connection Pins
Key Advantages of the AG20:
- High torque and quiet operation
- Superior compatibility with compact machines
- Strong, wear-resistant auger structure
- Fast mounting, low maintenance
- Cost-effective solution
Applications: Garden and park landscaping, sapling planting, fencing installation, soil drilling, urban infrastructure works
Frequently Asked Questions
What is the HKM AG20 used for?
The HKM AG20 is a model in the Hydraulic Augers family, used for drilling fast, precise holes for piling, posts, tree planting and foundation work.
Which carrier is the HKM AG20 suitable for?
The HKM AG20 is built to match carriers in the 1 - 2,5 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM AG20?
Key technical values of the HKM AG20: Oil Flow (l/min) 22 - 55, Operating Pressure (bar) 70 - 205, Input Power (kW) 2,5 - 18,7, Torque (Nm) 2000. The full spec table is on the product page and in the brochure.
