Hydraulic Auger Sets
HKM AG250
- Carrier Weight (ton)
- 18 - 24
- Drive Unit Weight (kg)
- 270
- Torque (Nm)
- 25000
- Rotary Speed (RPM)
- 12 - 26
- Input Power (kW)
- 21,3 - 68,0
- Oil Flow (l/min)
- 80 - 170
- Operating Pressure (bar)
- 160 - 240
- Shaft Diameter (mm)
- 75 (square)
- Auger Diameter (mm)
- 150 - 1200
- Auger Length (mm) (recm.)
- 1750
Product Detail

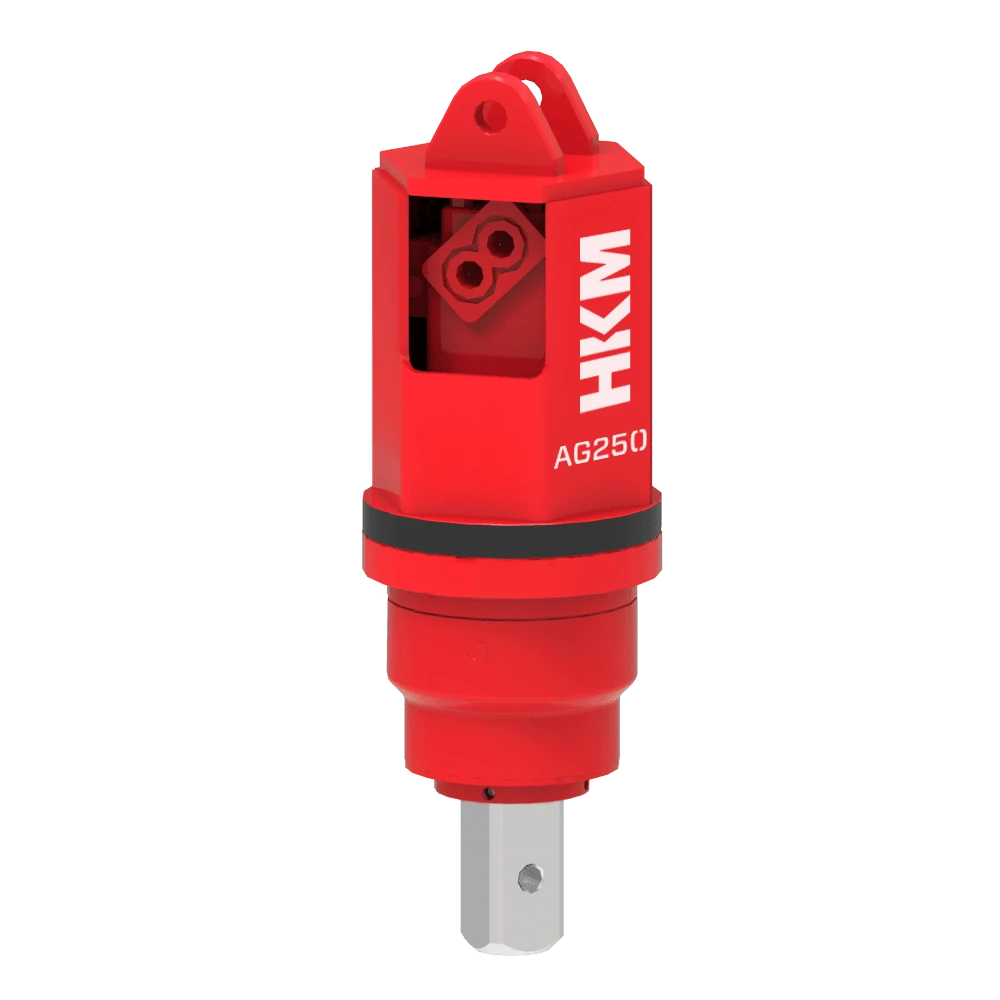

HKM AG250 - Hydraulic Auger Set
Industrial-Level Power - Maximum Performance on Site
The HKM AG250 Hydraulic Auger Set is developed for heavy-class carriers between 18 and 24 tonnes and gives excellent results at high depths and in tough ground with its 25,000 Nm torque capacity. Its steady 12-26 RPM speed range provides stable performance even with large-diameter holes.
Its 80-170 L/min oil flow and 160-240 bar operating pressure fully match powerful hydraulic systems. With its 75 mm square shaft, auger diameters from Ø150-Ø1200 mm can be used. This makes the AG250 indispensable for large-diameter foundation excavation, post installation and construction infrastructure work.
Set Contents:
- Hydraulic Auger Drive Unit
- Mounting Bracket (Hanger) - Double-Pin / Single-Pin / etc.

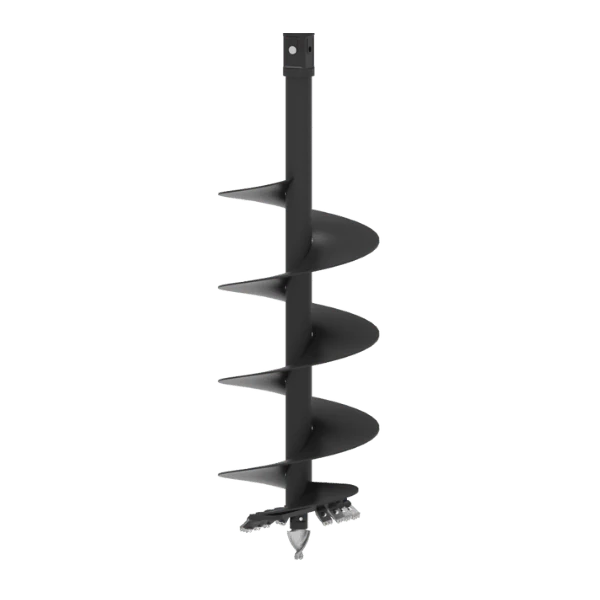

- Auger Bit Ø300 mm L:1200 mm

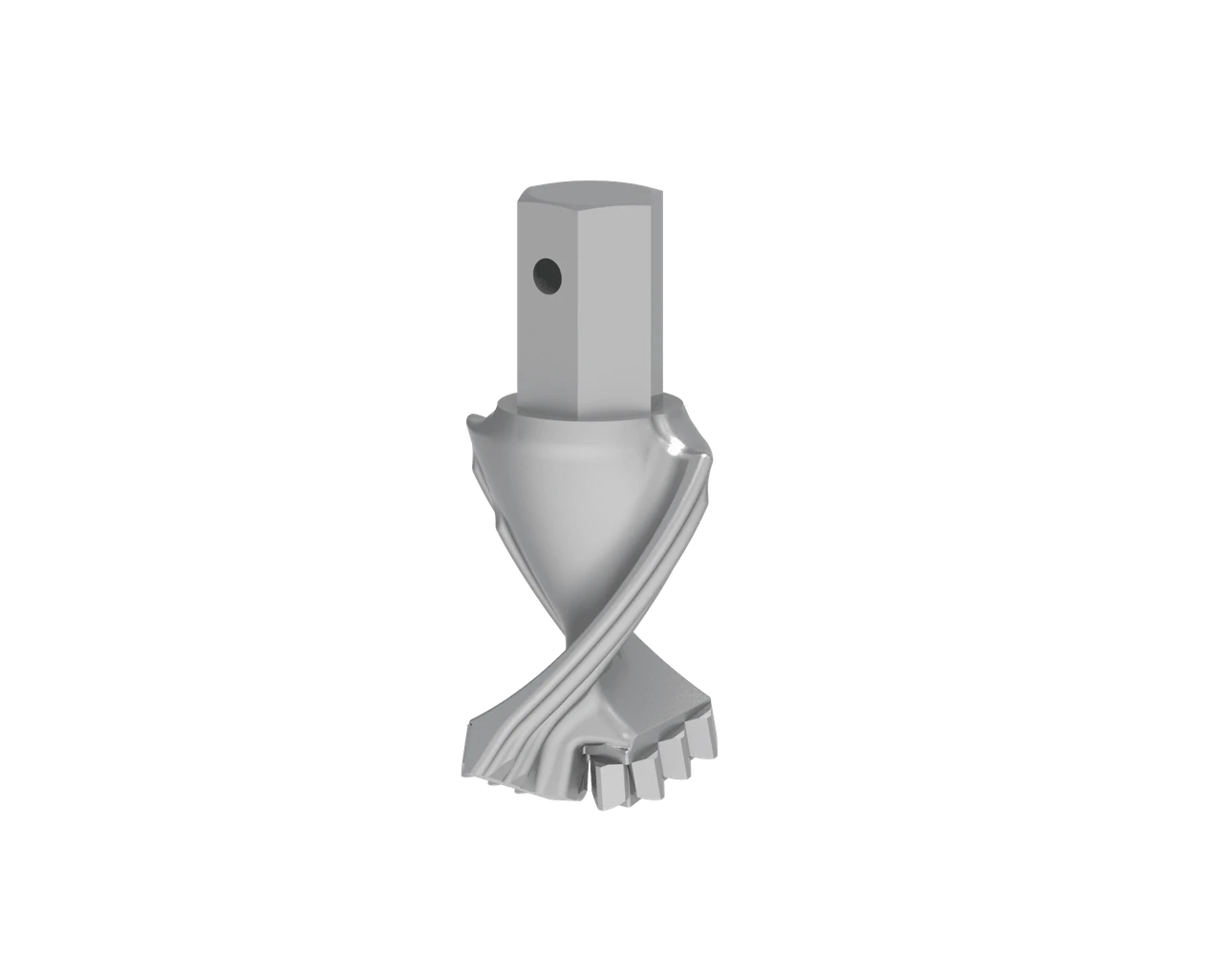

- Pilot Bit
- Hydraulic Connection Hoses
- Carrier Connection Pins
Key Advantages of the AG250:
- Maximum drilling power with 25,000 Nm torque
- Wide application scope with large-diameter bits
- Durable, long-life construction
- Stable performance in tough site conditions
- Smooth compatibility with heavy-duty machines
Applications: Large-diameter foundation excavation, high-voltage line and pole installation, infrastructure engineering, hard-ground applications
Frequently Asked Questions
What is the HKM AG250 used for?
The HKM AG250 is a model in the Hydraulic Augers family, used for drilling fast, precise holes for piling, posts, tree planting and foundation work.
Which carrier is the HKM AG250 suitable for?
The HKM AG250 is built to match carriers in the 18 - 24 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM AG250?
Key technical values of the HKM AG250: Oil Flow (l/min) 80 - 170, Operating Pressure (bar) 160 - 240, Input Power (kW) 21,3 - 68,0, Torque (Nm) 25000. The full spec table is on the product page and in the brochure.
