Hydraulic Auger Sets
HKM AG35
- Carrier Weight (ton)
- 3 - 5
- Drive Unit Weight (kg)
- 71
- Torque (Nm)
- 3500
- Rotary Speed (RPM)
- 32 - 72
- Input Power (kW)
- 4,0 - 28,0
- Oil Flow (l/min)
- 30 - 70
- Operating Pressure (bar)
- 80 - 240
- Shaft Diameter (mm)
- 65 (round)
- Auger Diameter (mm)
- 100 - 750
- Auger Length (mm) (recm.)
- 1200
Product Detail
HKM AG35 - Hydraulic Auger Set
A Powerful, Flexible Solution for Compact Machines
The HKM AG35 Hydraulic Auger Set is designed specifically for mini excavators and compact machines between 3 and 5 tonnes. Standing out with its high torque capacity, the AG35 works at 3,500 Nm of torque and a 32-72 RPM speed range for superior efficiency in ground drilling.
Thanks to its 30-70 L/min oil flow and 80-240 bar operating pressure, it runs smoothly across a wide range of hydraulic systems. With its 65 mm round shaft and 100-750 mm auger diameter compatibility, it is ideal for fence installation, light foundation drilling, agriculture and infrastructure work.
Set Contents:

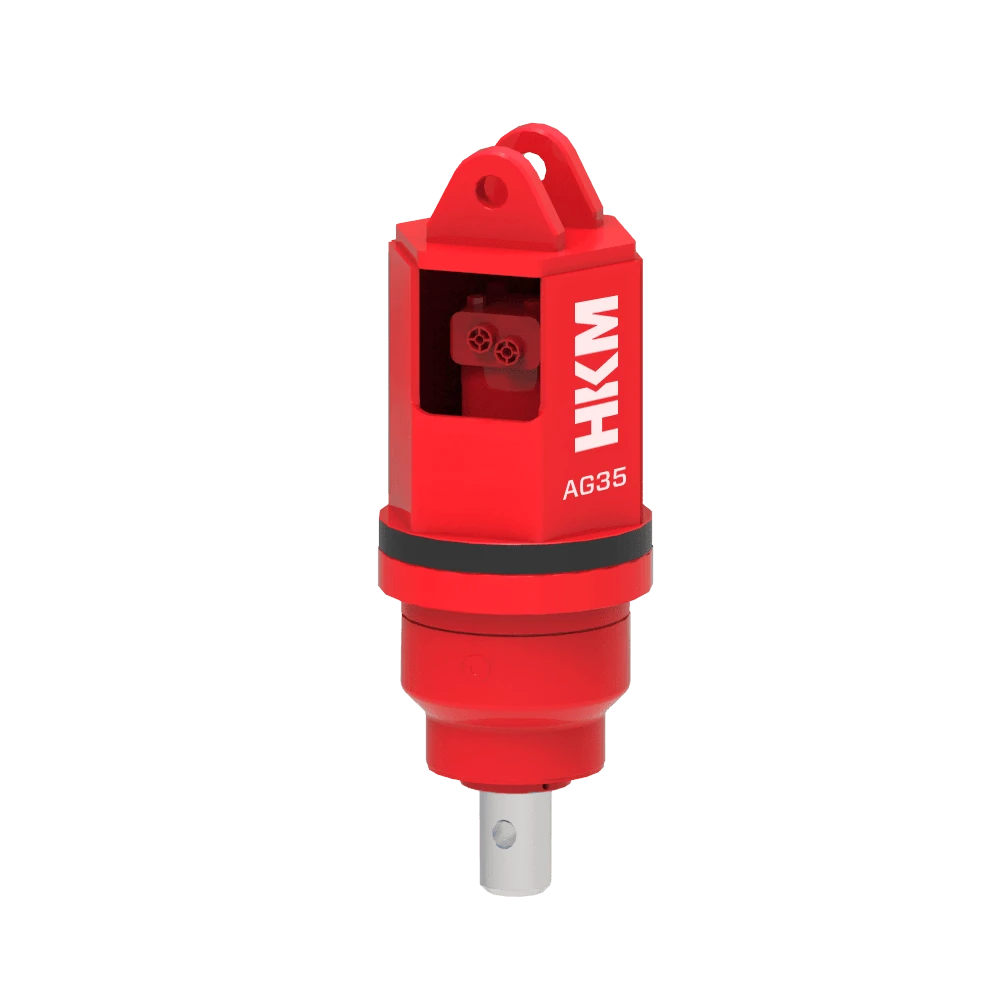

- Hydraulic Auger Drive Unit
- Mounting Bracket (Hanger) - Double-Pin / Single-Pin / etc.

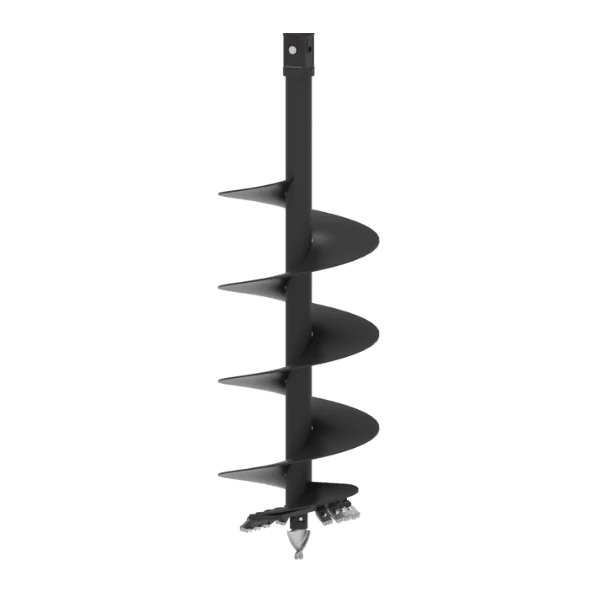

- Auger Bit Ø300 mm L:1200 mm

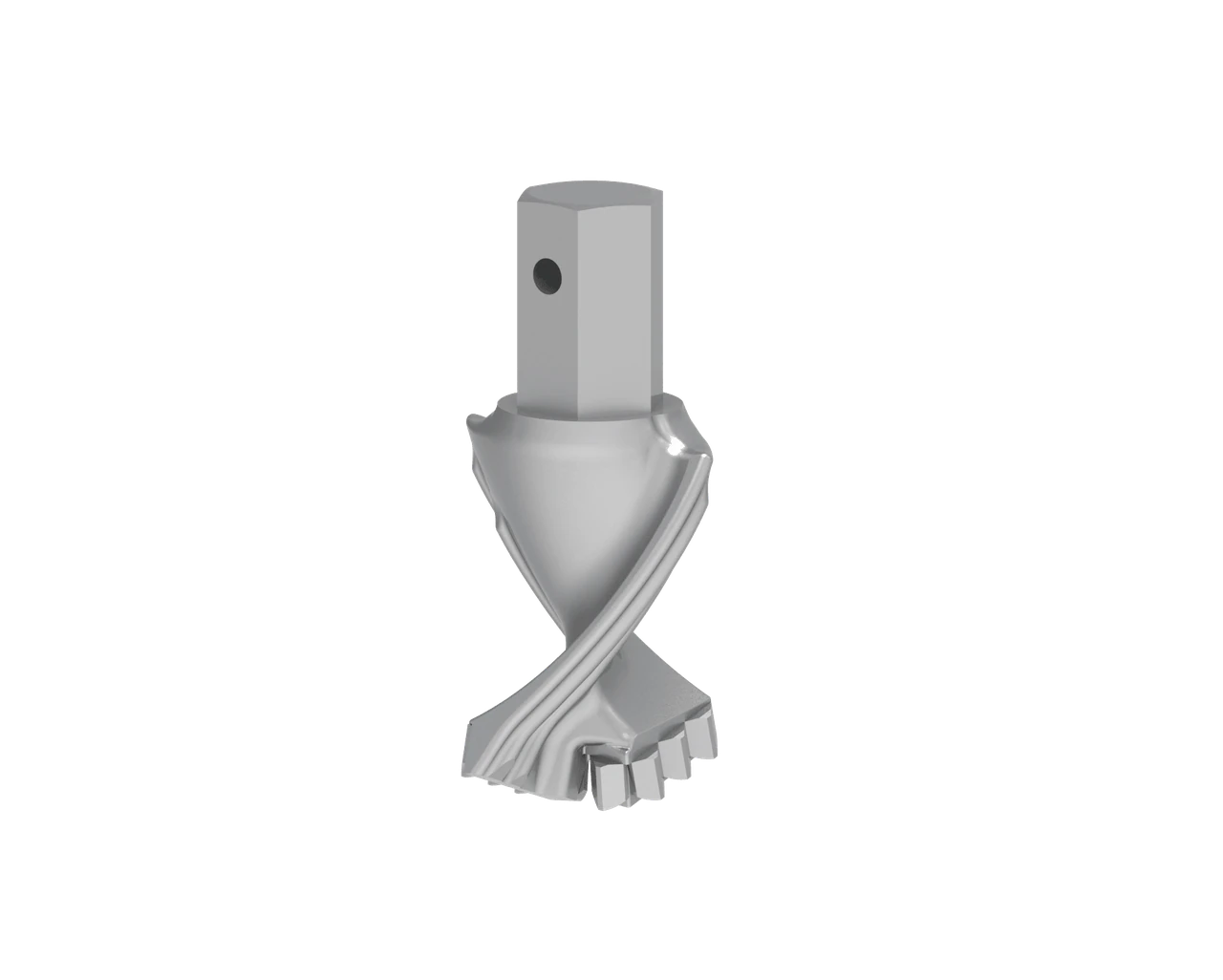

- Pilot Bit
- Hydraulic Connection Hoses
- Carrier Connection Pins
Key Advantages of the AG35:
- Powerful, high-torque build
- Sturdy, wear-resistant auger system
- Wide ground compatibility
- Fast mounting, low maintenance
- Economical solution for professional work
Applications: Light construction, landscaping, agricultural work, urban infrastructure projects
Frequently Asked Questions
What is the HKM AG35 used for?
The HKM AG35 is a model in the Hydraulic Augers family, used for drilling fast, precise holes for piling, posts, tree planting and foundation work.
Which carrier is the HKM AG35 suitable for?
The HKM AG35 is built to match carriers in the 3 - 5 ton class. Share your machine tonnage and we will confirm the right model.
What are the technical specifications of the HKM AG35?
Key technical values of the HKM AG35: Oil Flow (l/min) 30 - 70, Operating Pressure (bar) 80 - 240, Input Power (kW) 4,0 - 28,0, Torque (Nm) 3500. The full spec table is on the product page and in the brochure.
